The 2002 DEK ELA 03 is a computer-controlled screen printer designed for high-precision and efficient PCB manufacturing. Here’s a quick overview of its key features and capabilities:

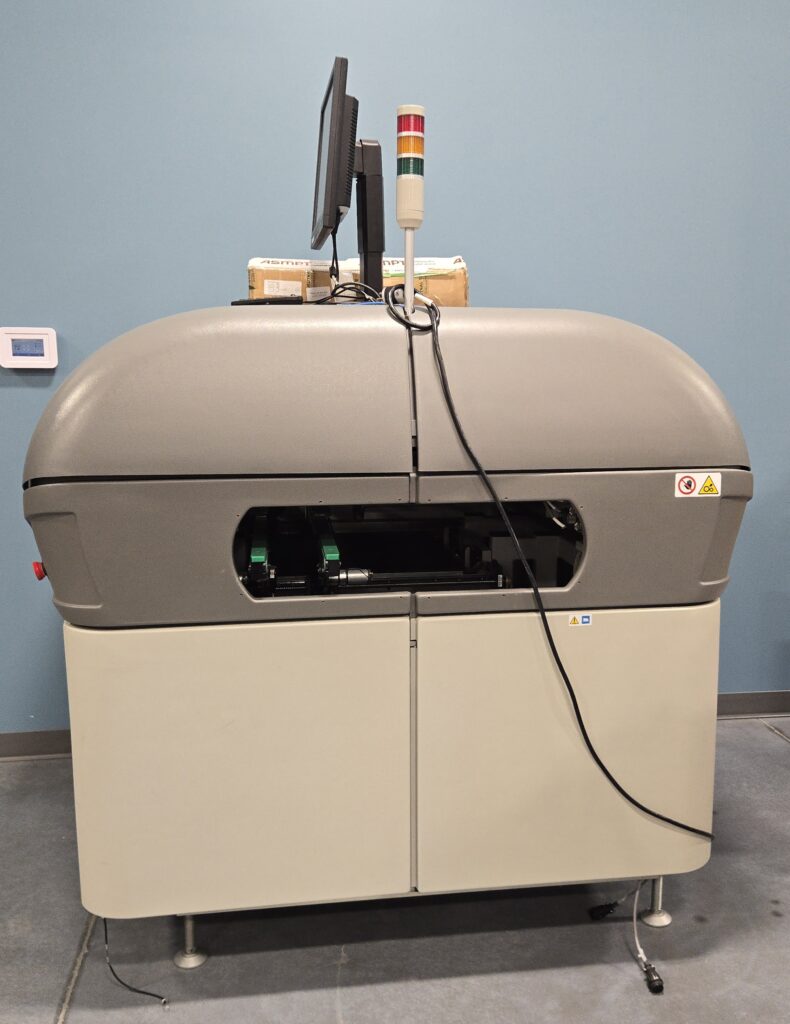

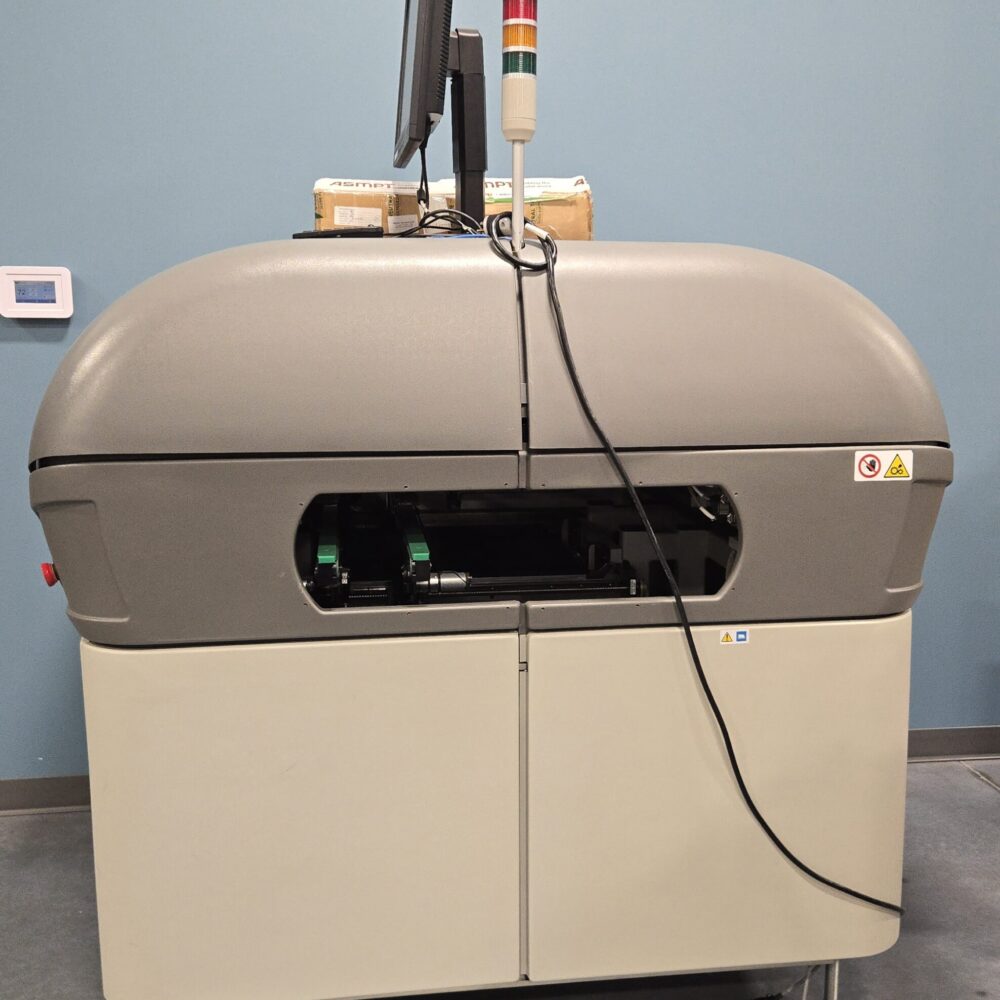

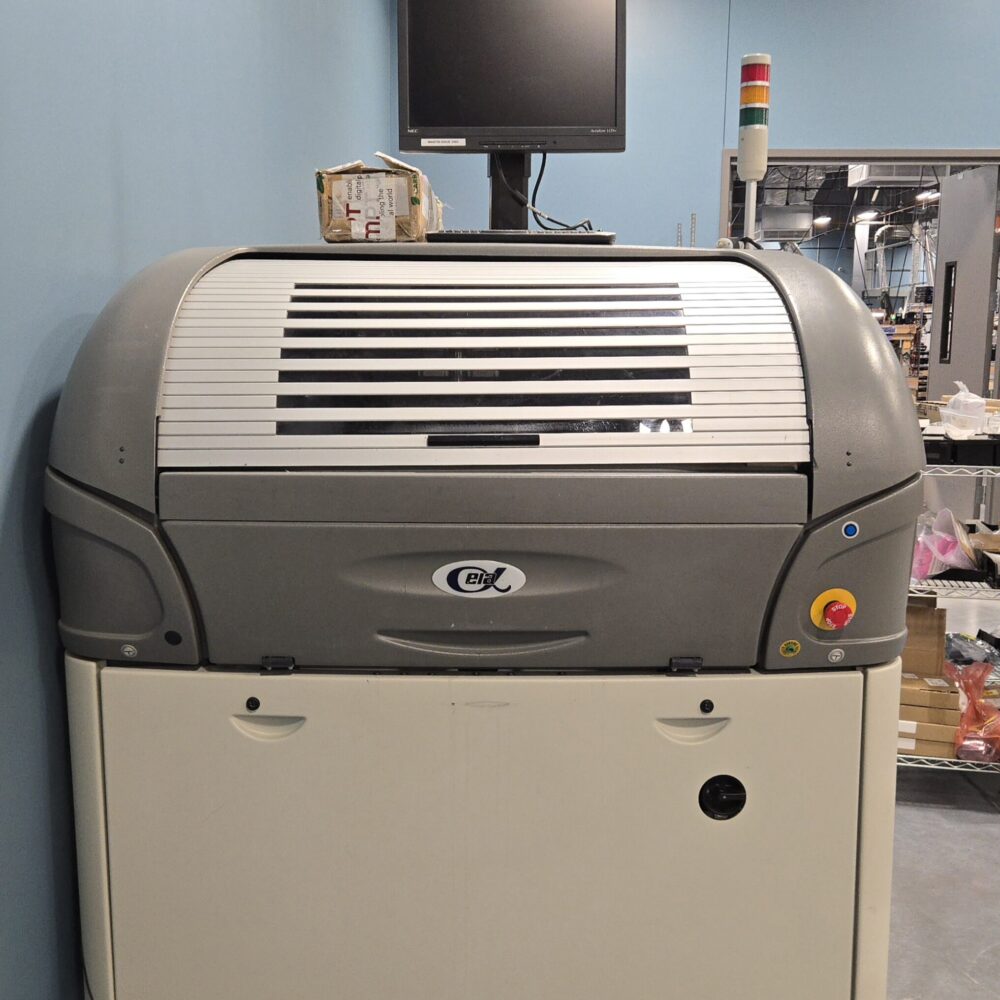

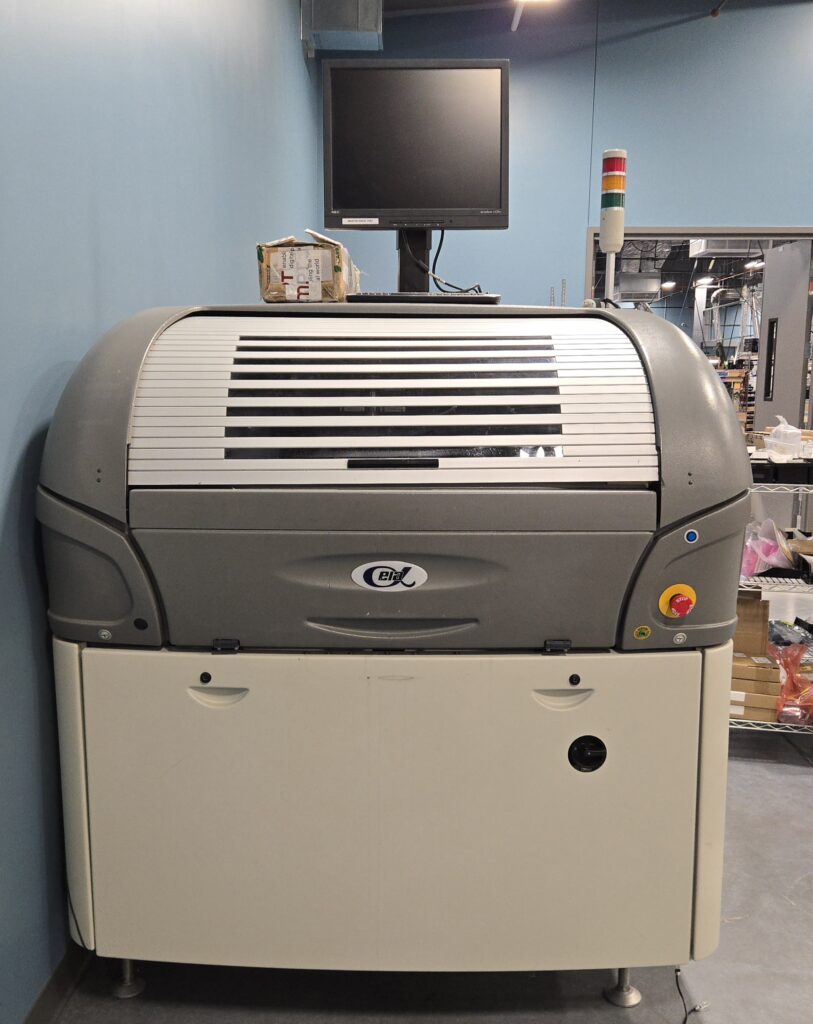

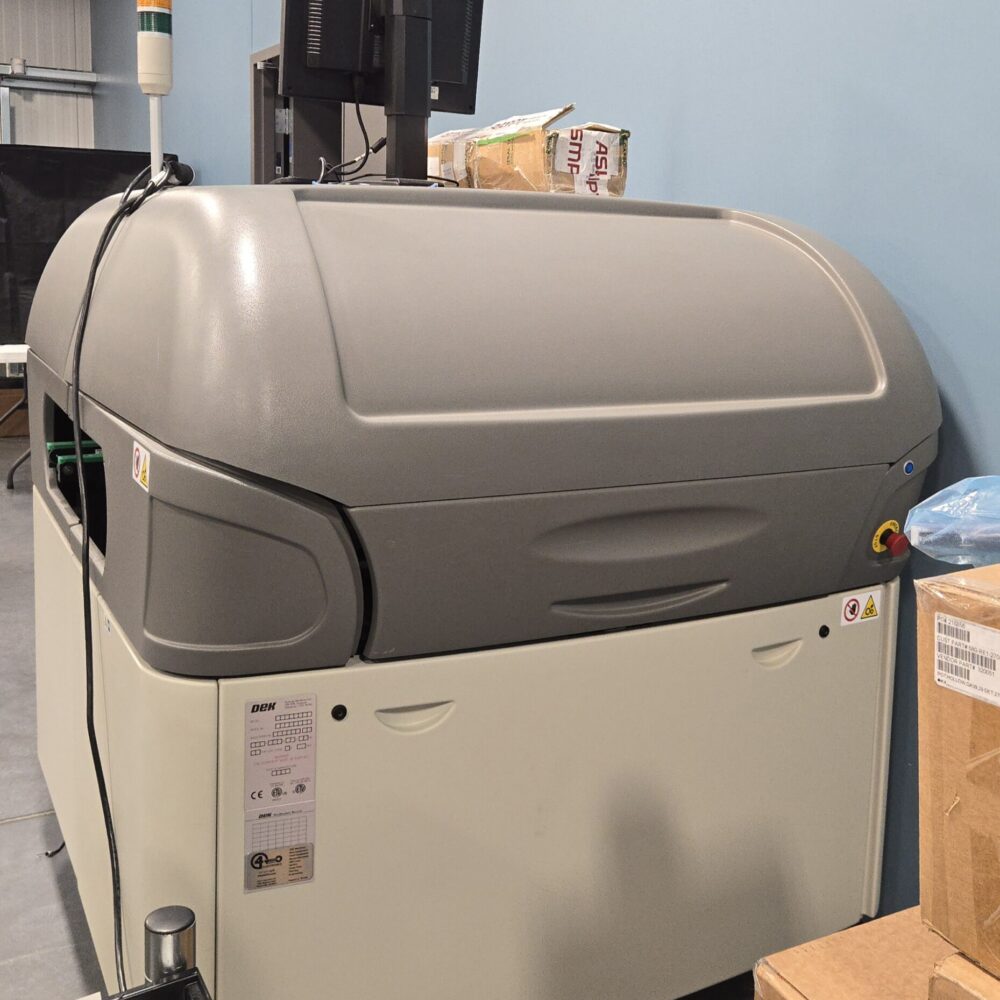

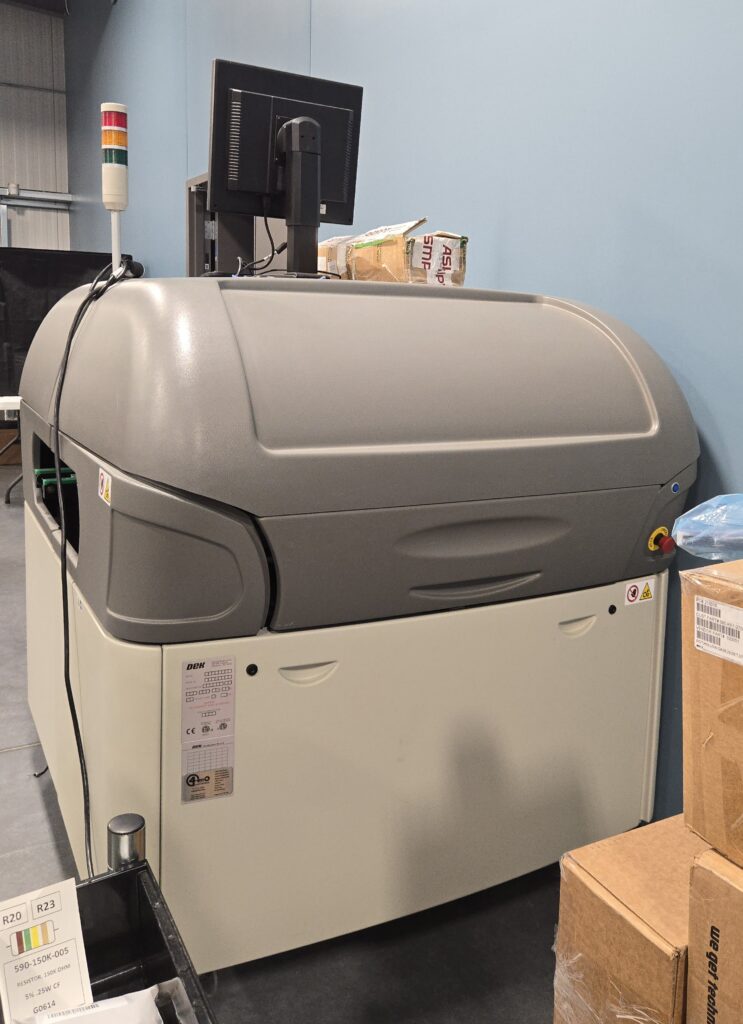

DEK ELA 03 Screen Printer (2002)

• Type: Automatic inline stencil printer
• Applications: PCB screen printing for industrial, commercial, and military use
• Print Area: Supports board sizes from 40 x 50 mm up to 510 x 508 mm
• Print Speed: Adjustable from 2 mm/sec to 150 mm/sec
• Print Pressure: Programmable from 0 to 20 kg
• Stencil Separation: Speed range of 0.1–20 mm/sec; distance up to 3 mm
• Vision System: High-resolution digital imaging for precise component alignment
• Automation Features:
  • Auto-stencil cleaning
  • Auto-alignment
  • Multiple robotic arms for material handling
• User Interface: Touchscreen with intuitive software
• Safety: Integrated guards and remote diagnostics for service access
• Substrate Compatibility: FR-4, polyimide, Kapton

Fully Functional
