The 2014 Speedprint SP710 AVI is a high-precision SMT screen printer designed for flexibility, accuracy, and high-throughput production. Here’s a detailed overview of its features and capabilities:

• Upgrade: Windows 10 Pro OS
• 2D+ Paste Inspection with Gerber
• 23”-29” Integrated Stencil Adaptor
• Auto Stencil Load / Eject
• Under Stencil Cleaner with Vacuum
• Laser Guided Tooling (10 pins included)
• One Set Squeegee Blades (270mm) Included

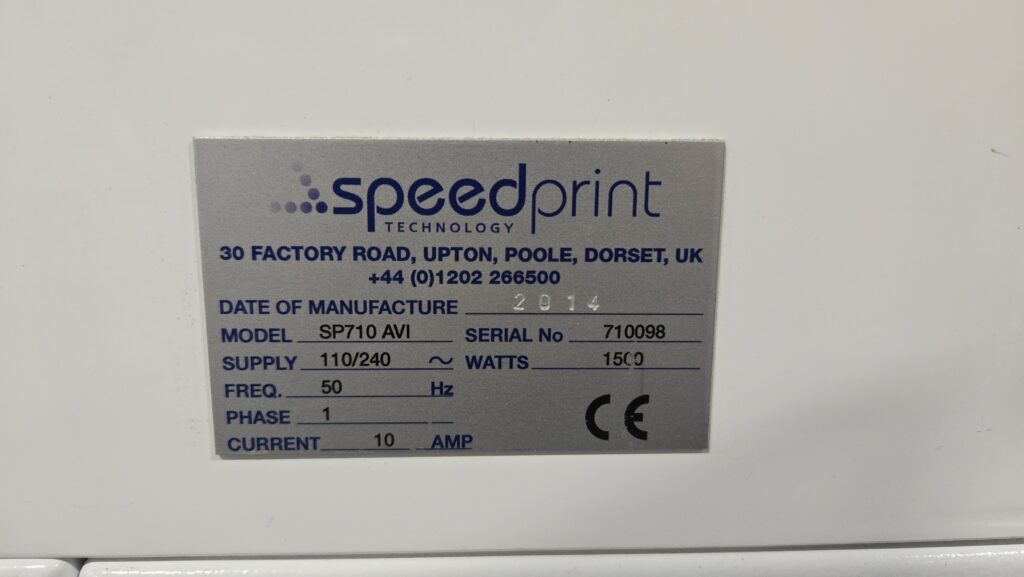

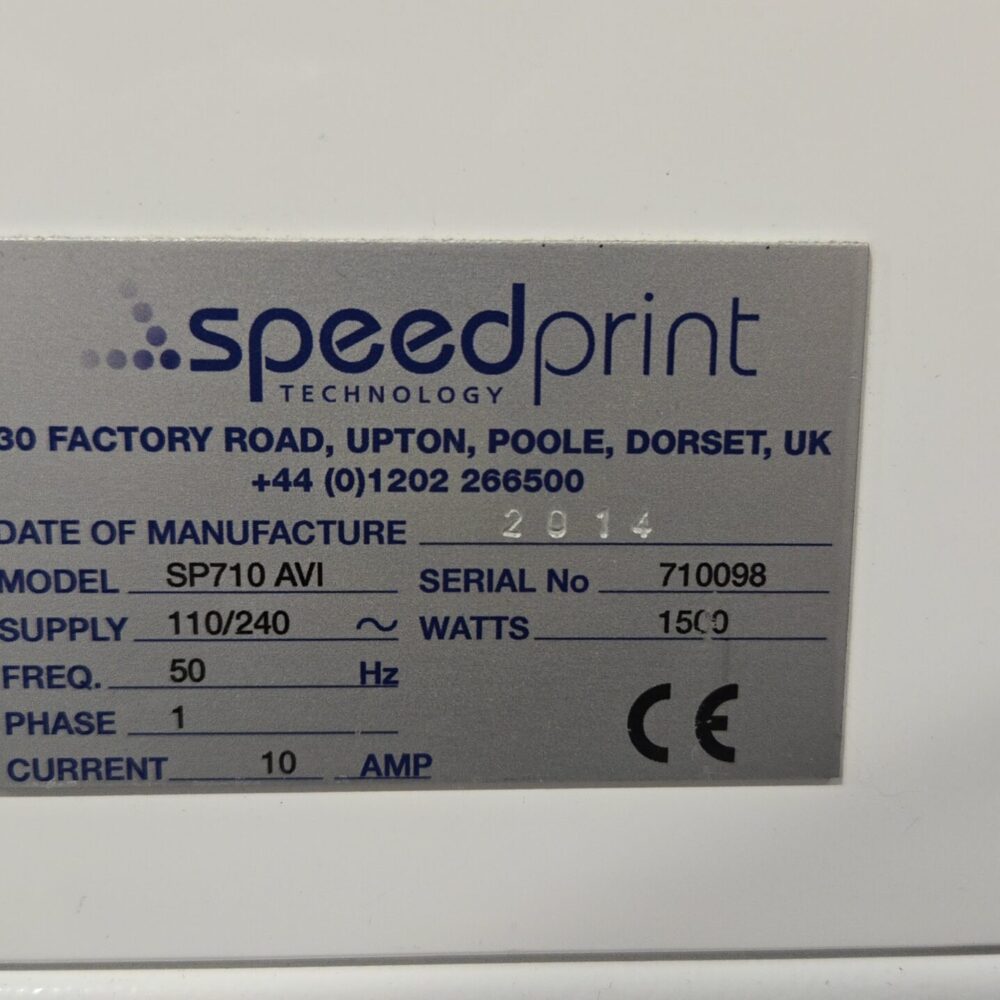

• 110V / 240V

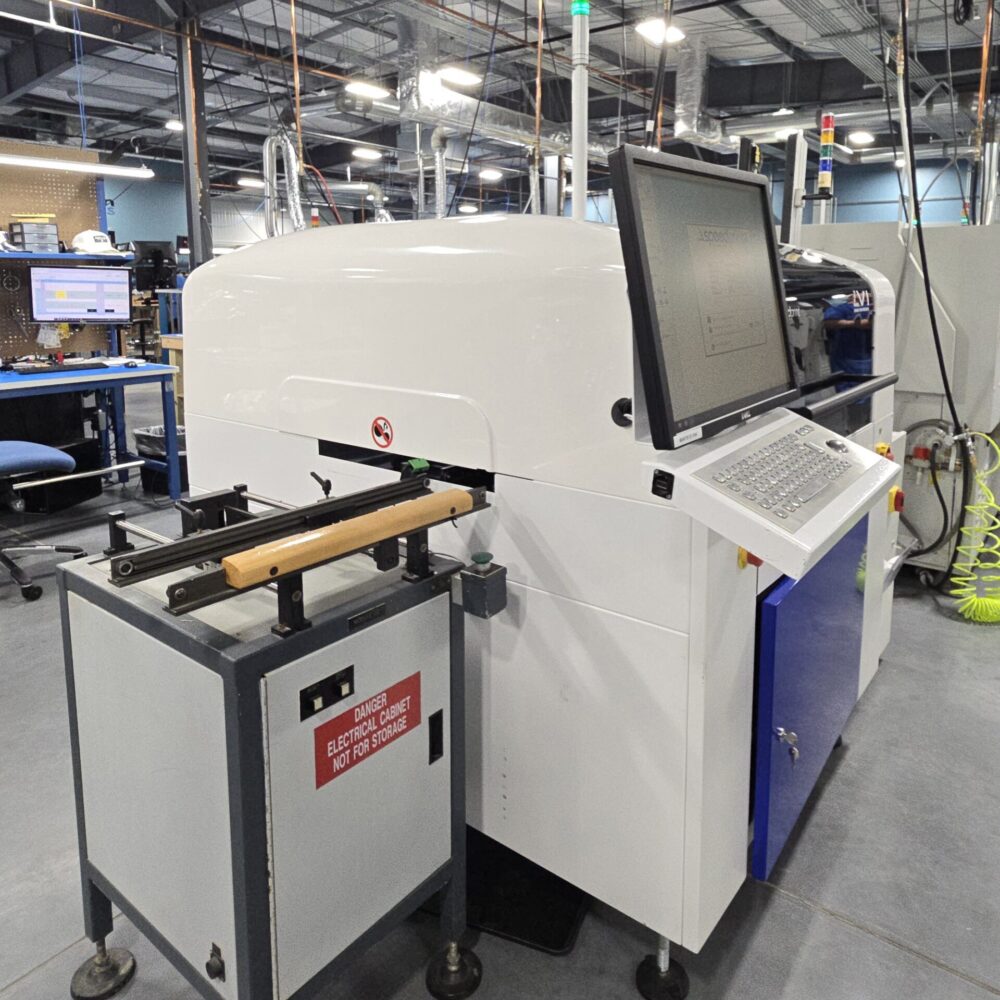

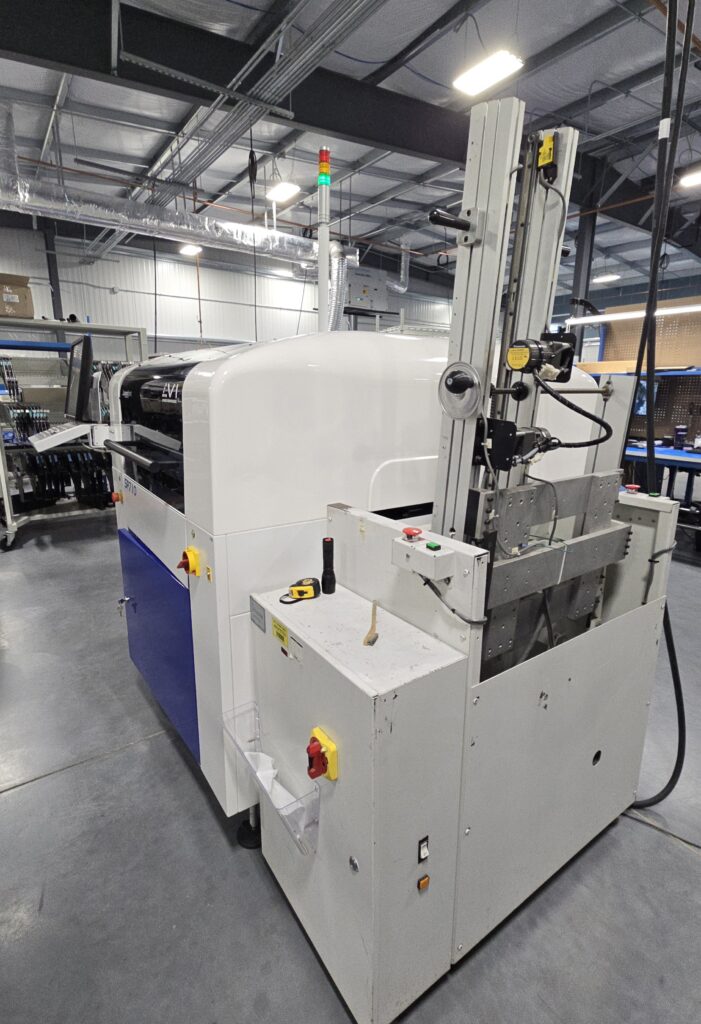

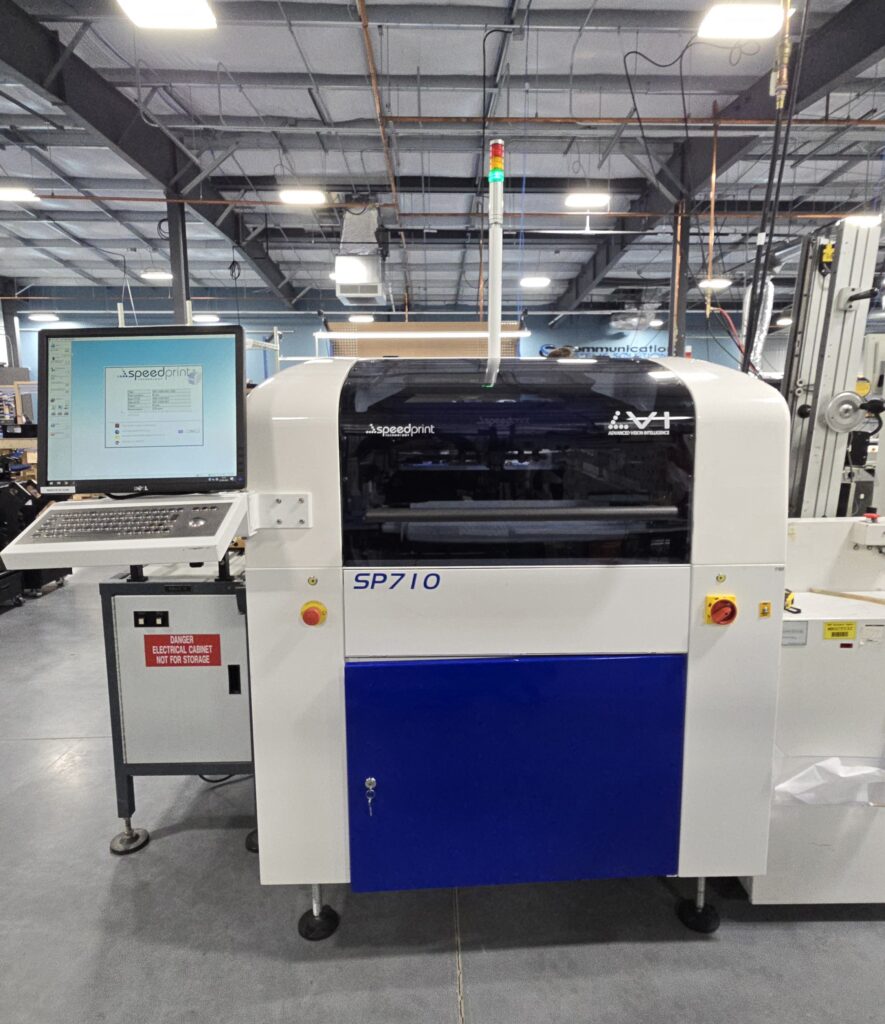

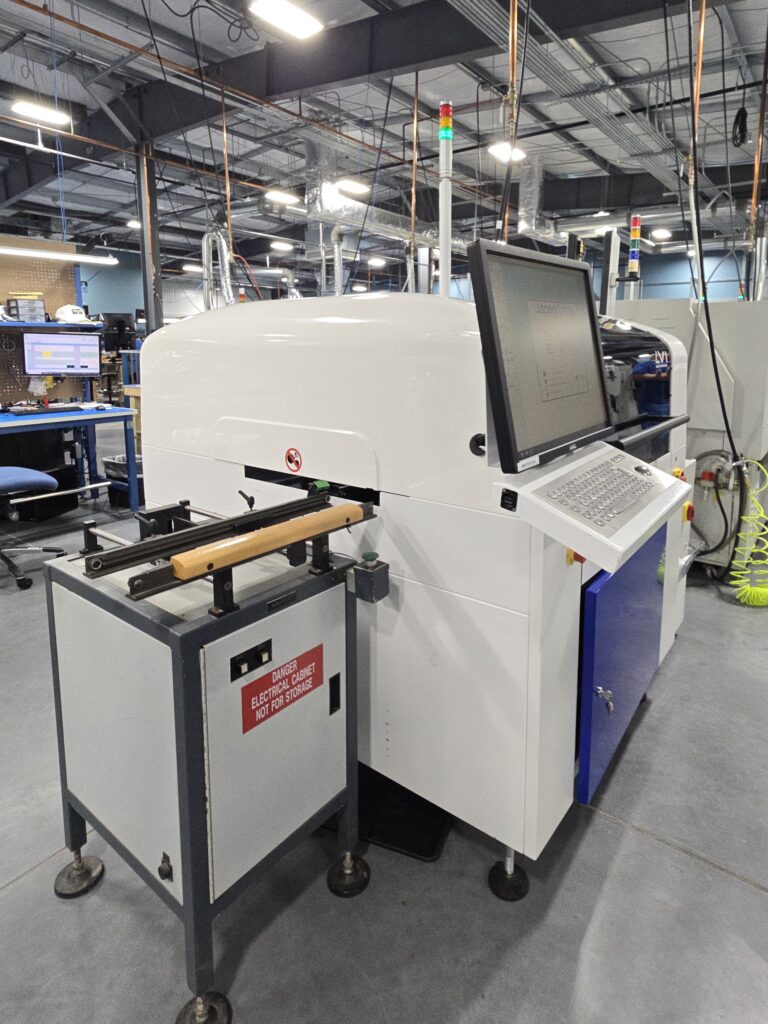

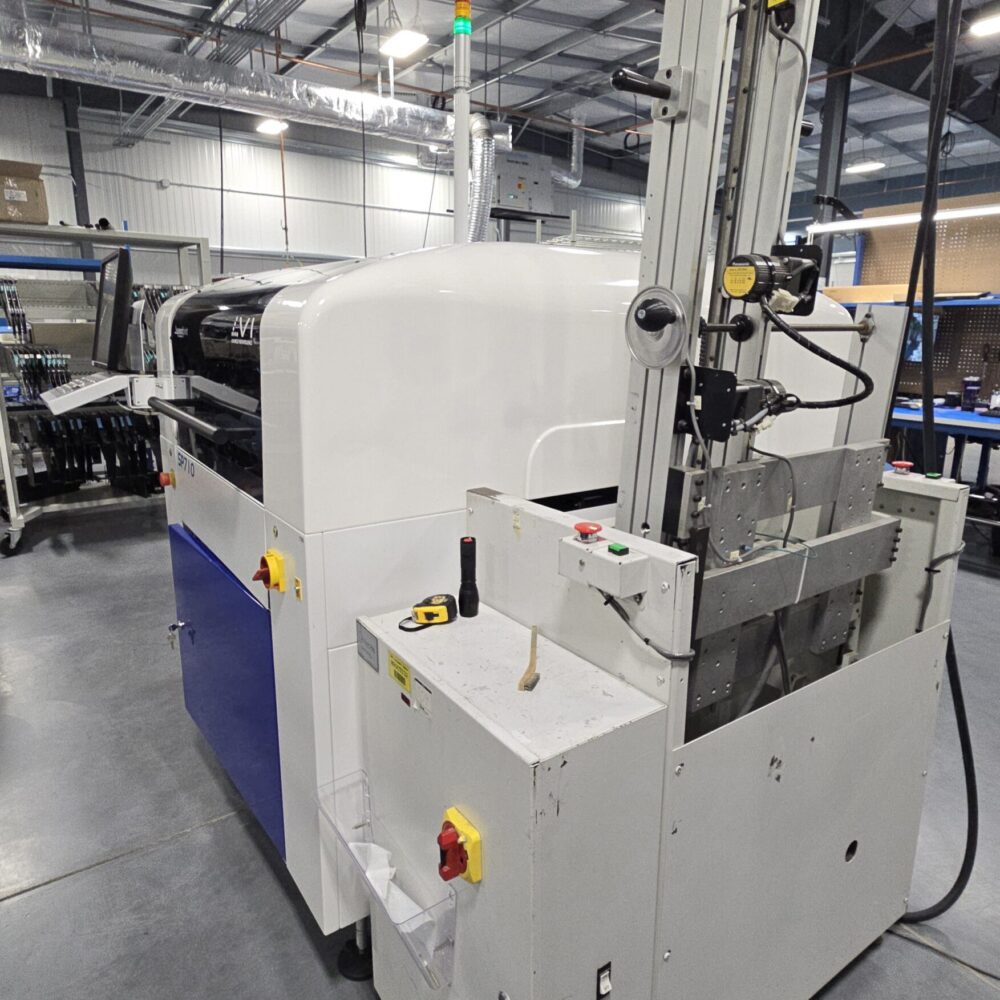

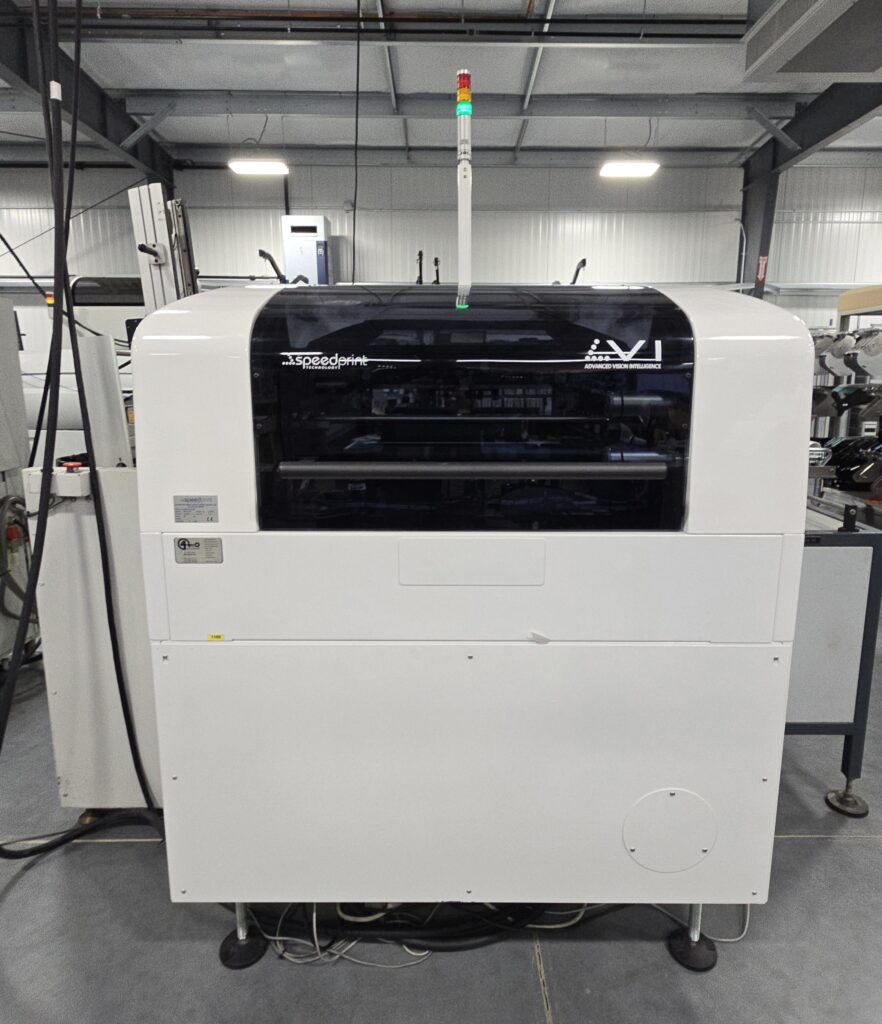

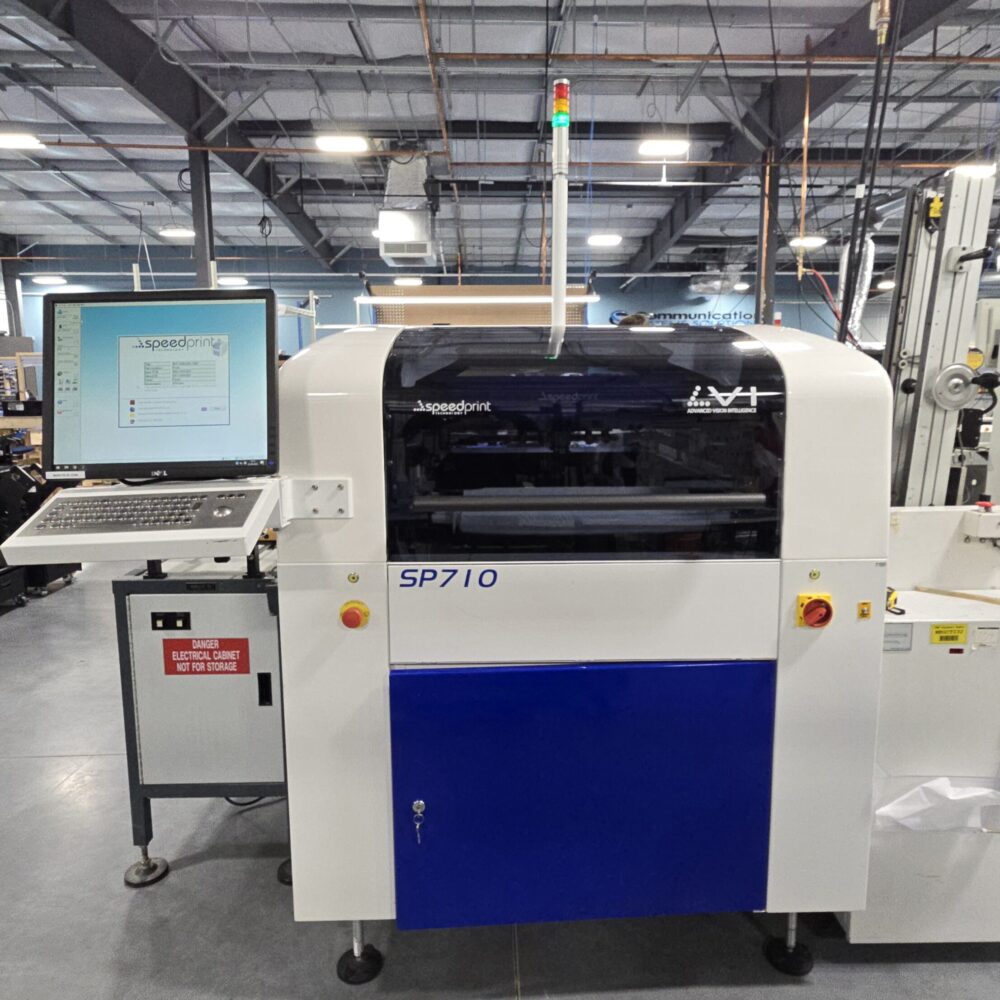

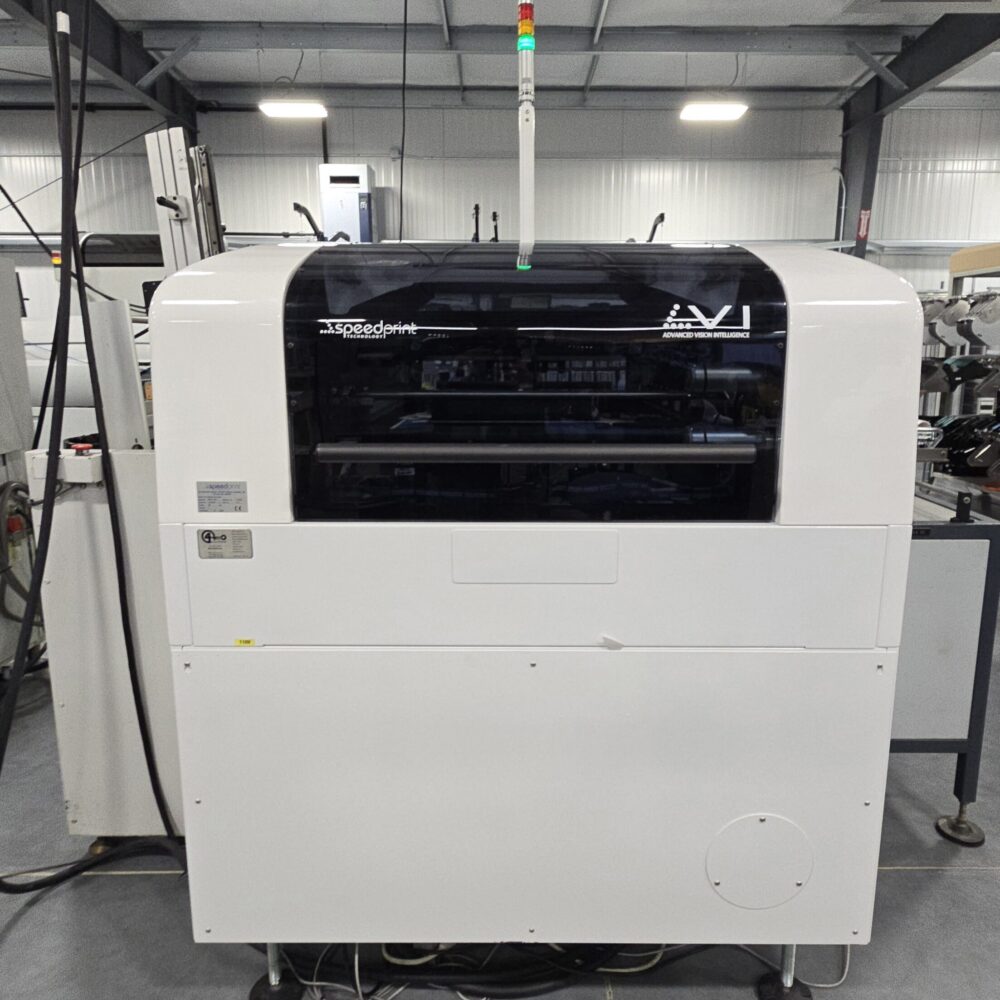

Speedprint SP710 AVI Screen Printer (2014)

• Max Board Size: 600 mm × 510 mm (23.5″ × 20″)
• Min Board Size: 50 mm × 30 mm
• Stencil Frame Compatibility: 23″ × 23″ to 29″ × 29″
• Vision System: Twin roving camera with “look down – look down” alignment
  • Enables solder paste presence check before printing
  • Uses fiducial marks or stencil/PCB features for alignment
• Under Stencil Cleaning: Fully programmable vacuum system
  • Can run wet or dry in any combination

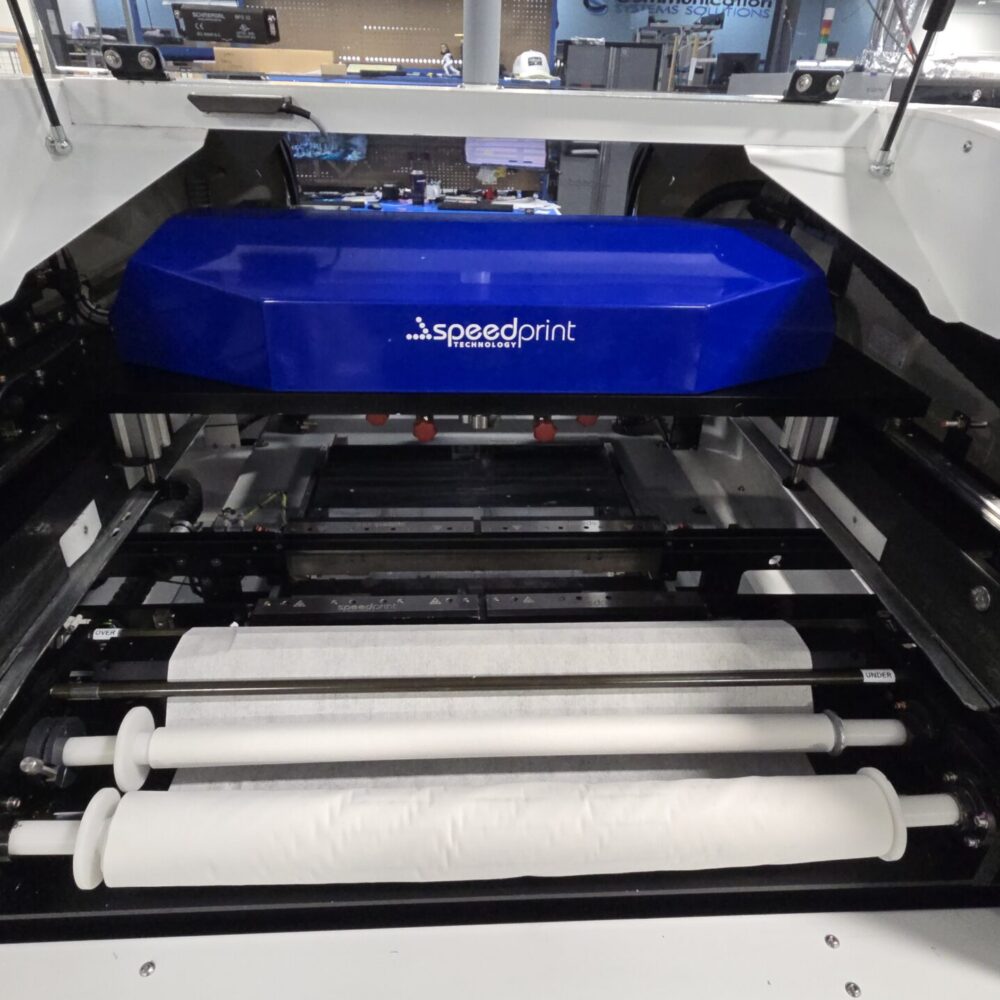

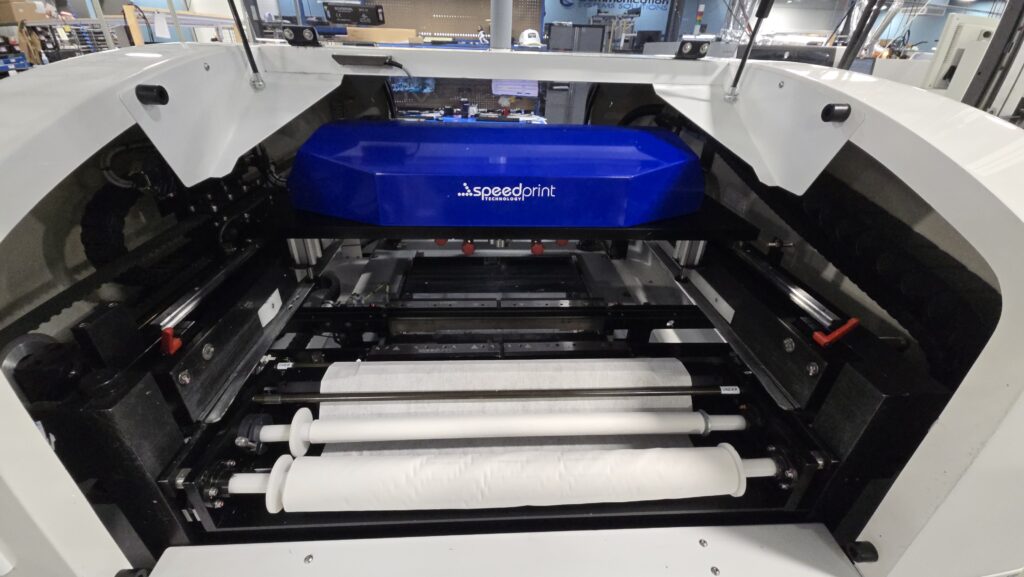

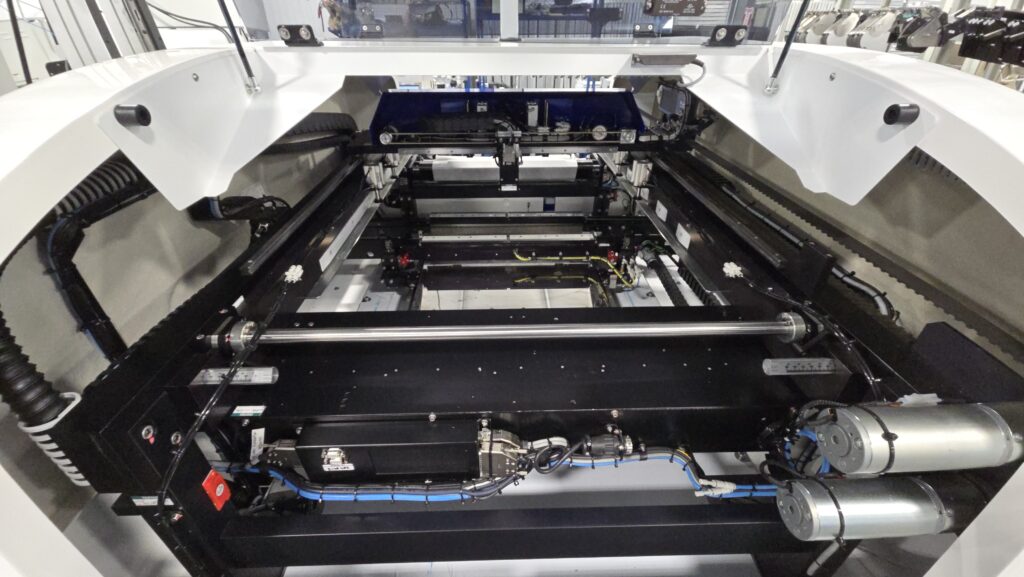

• Print Head: Closed-loop squeegee control with programmable parameters
• Software: Windows-based interface with intuitive controls
  • Includes production logging, fault reporting, and self-diagnostics
• Dispense Capability: Optional Automatic Dispense Unit (ADu)
  • Supports paste and glue modules
• Substrate Handling: Processes ultra-thin PCBs down to 0.2 mm
  • UTC system clamps top and bottom independently for zero distortion
• Process Flow: Left to right
• Inspection: Integrated 2D inspection system
• Accessories: Includes 2 sets of squeegee blade holders and blades

This model is ideal for high-mix environments that require quick product changeovers and consistent print quality. It balances performance with ease of use and low cost of ownership.

Fully Functional
