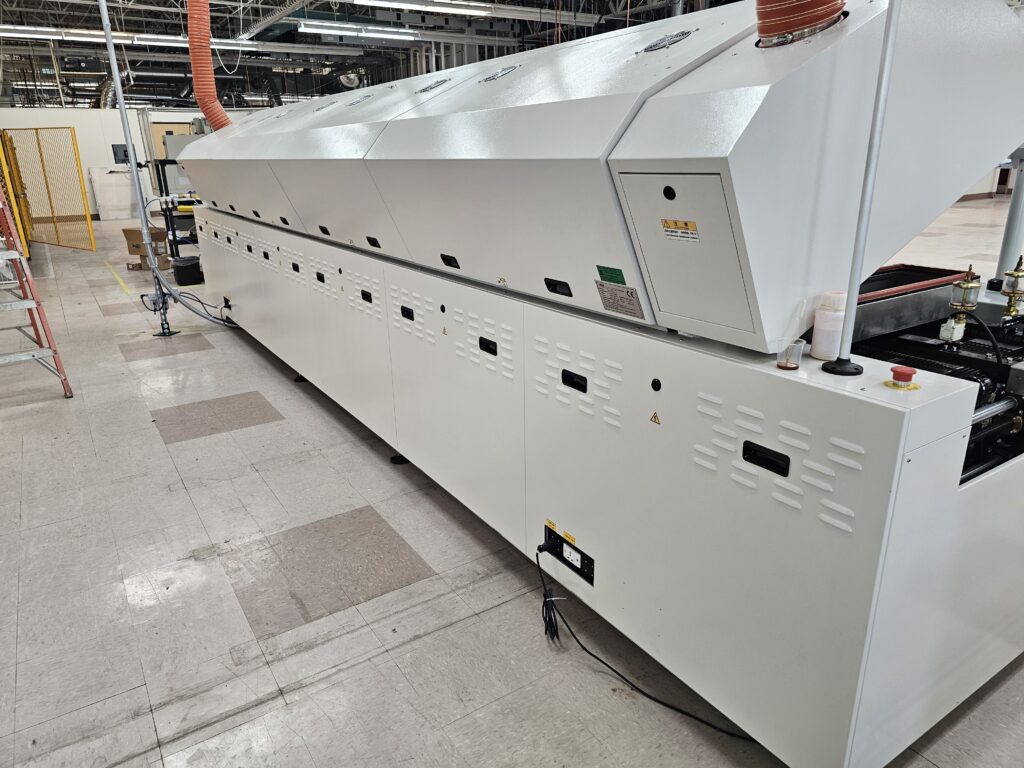

Description

Make: Juki

Model: RS-1000II

Year: 2016 DEC

Type: Reflow Oven

Details:

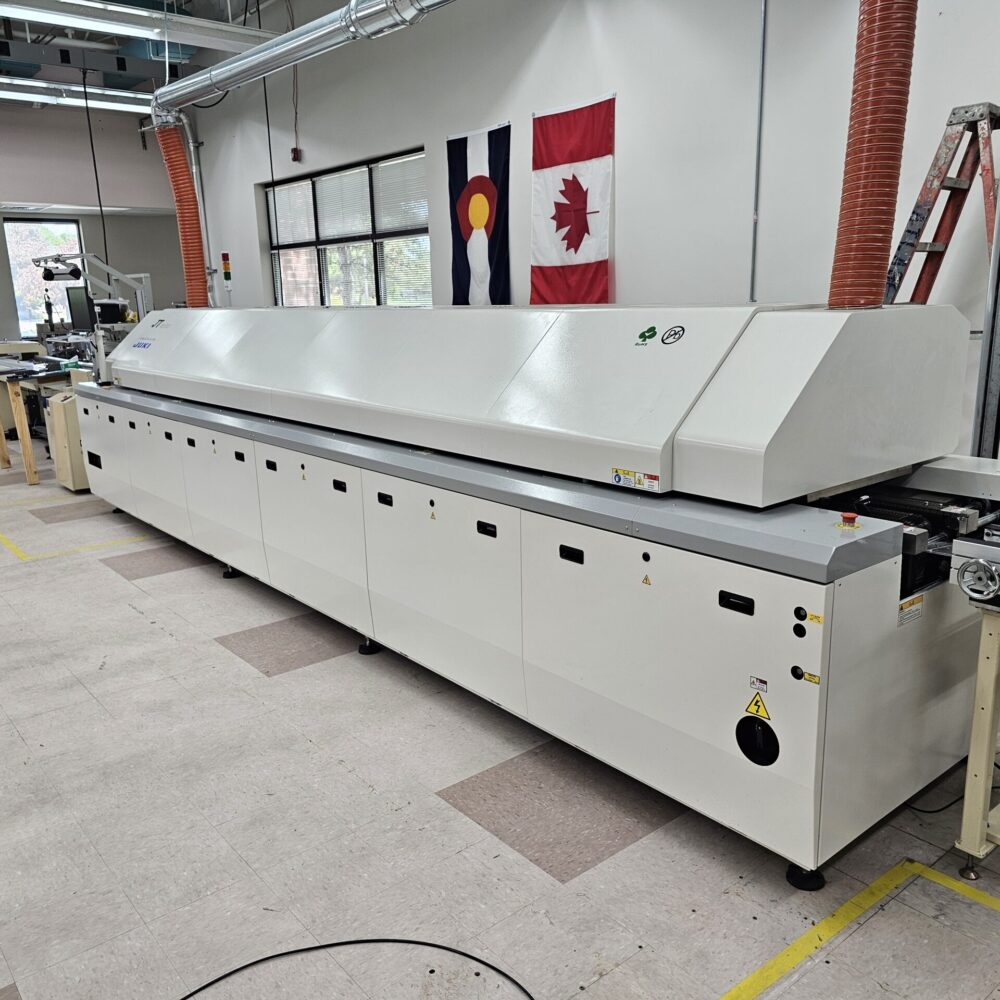

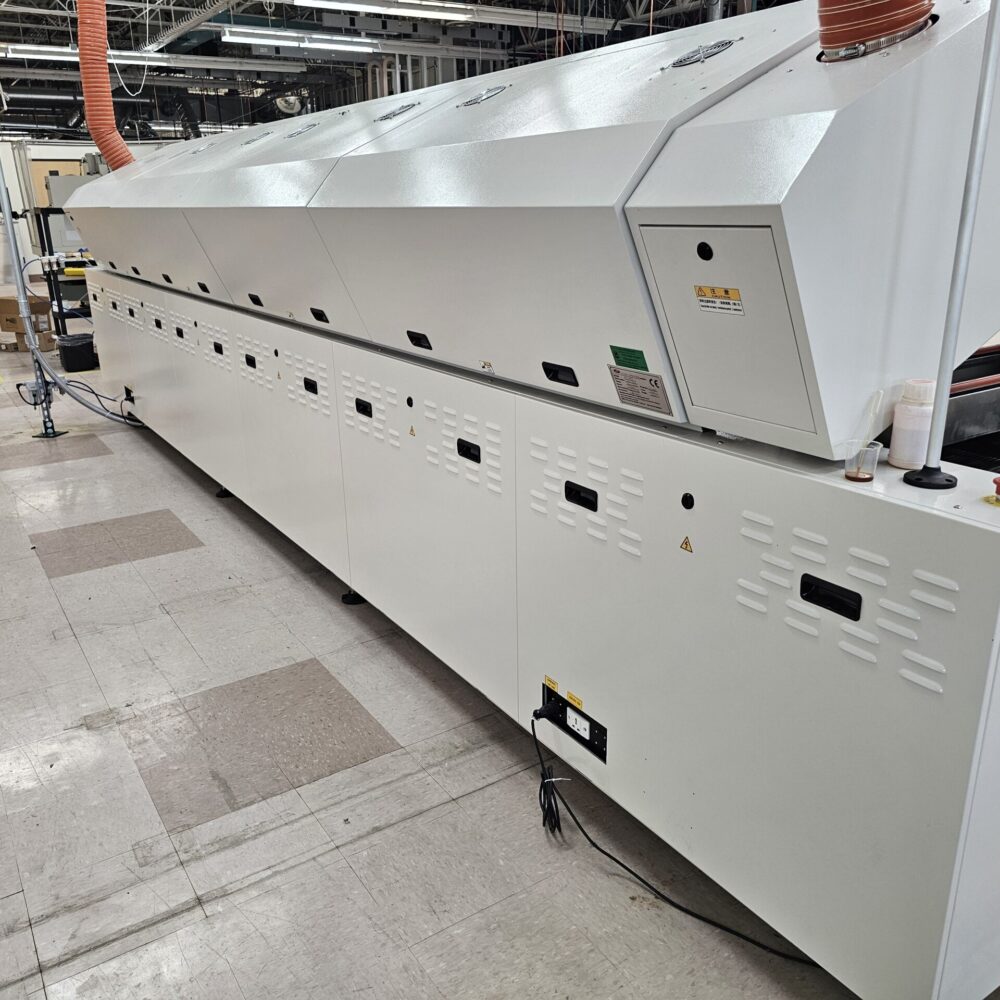

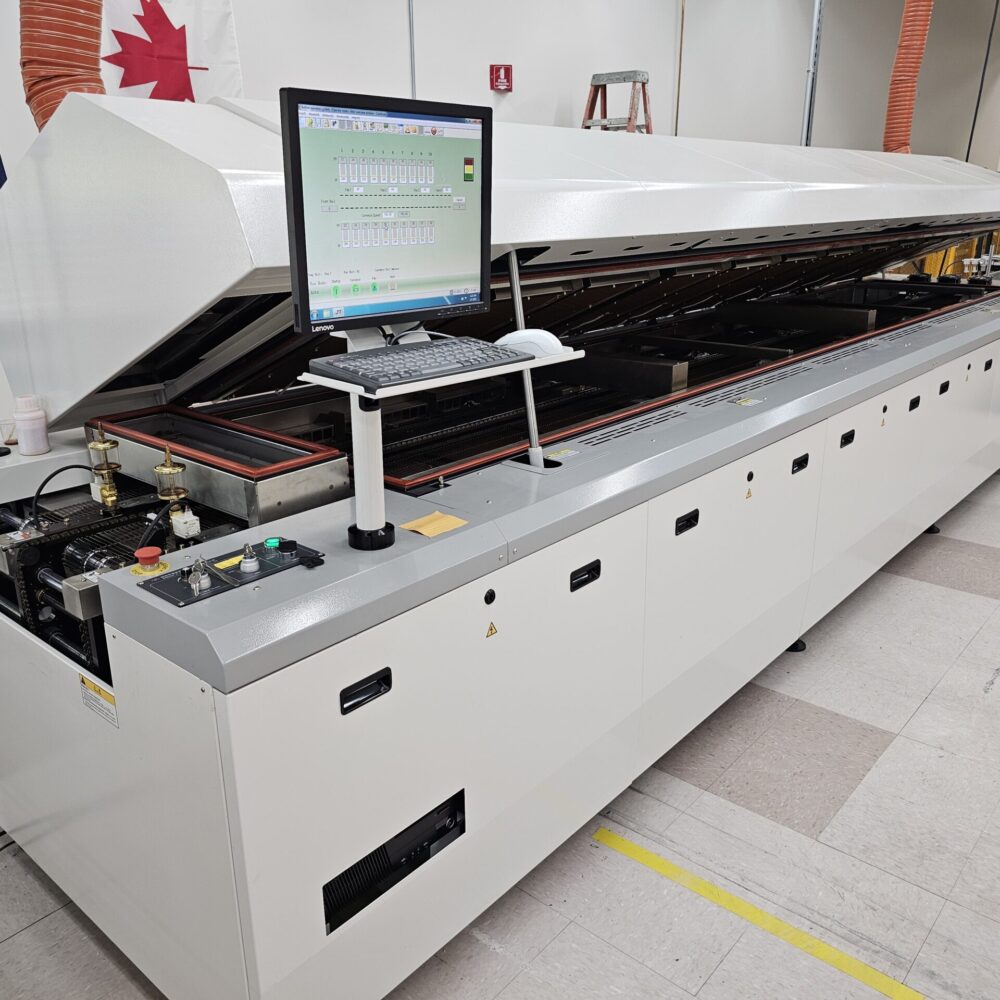

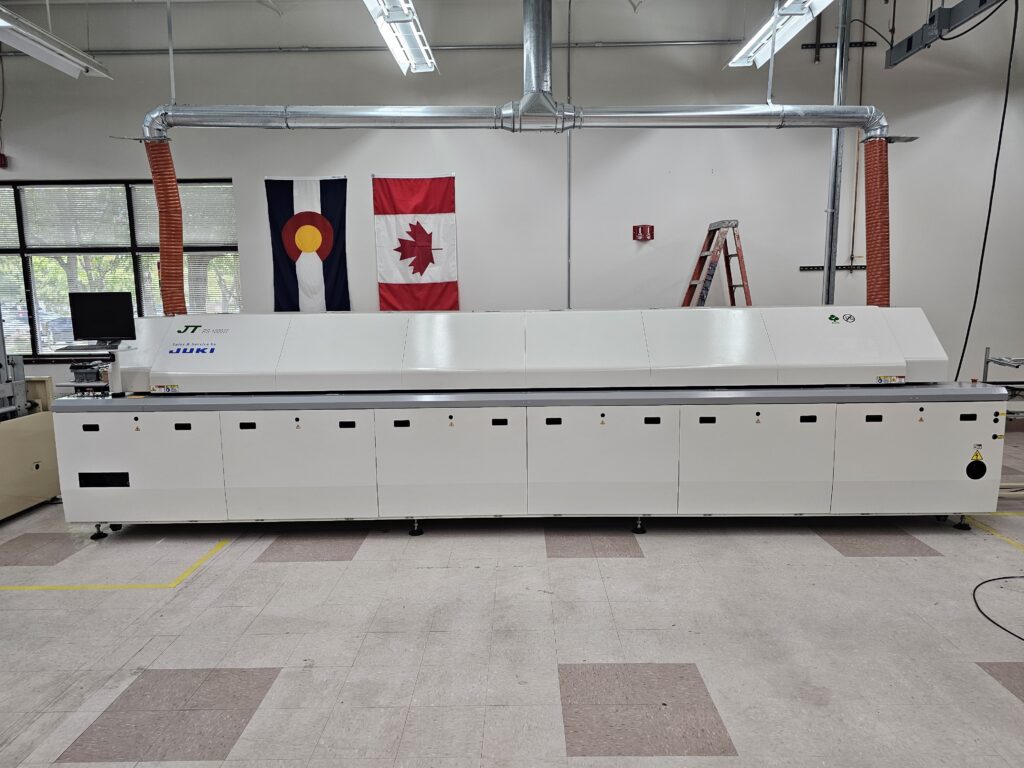

Like New Reflow Oven

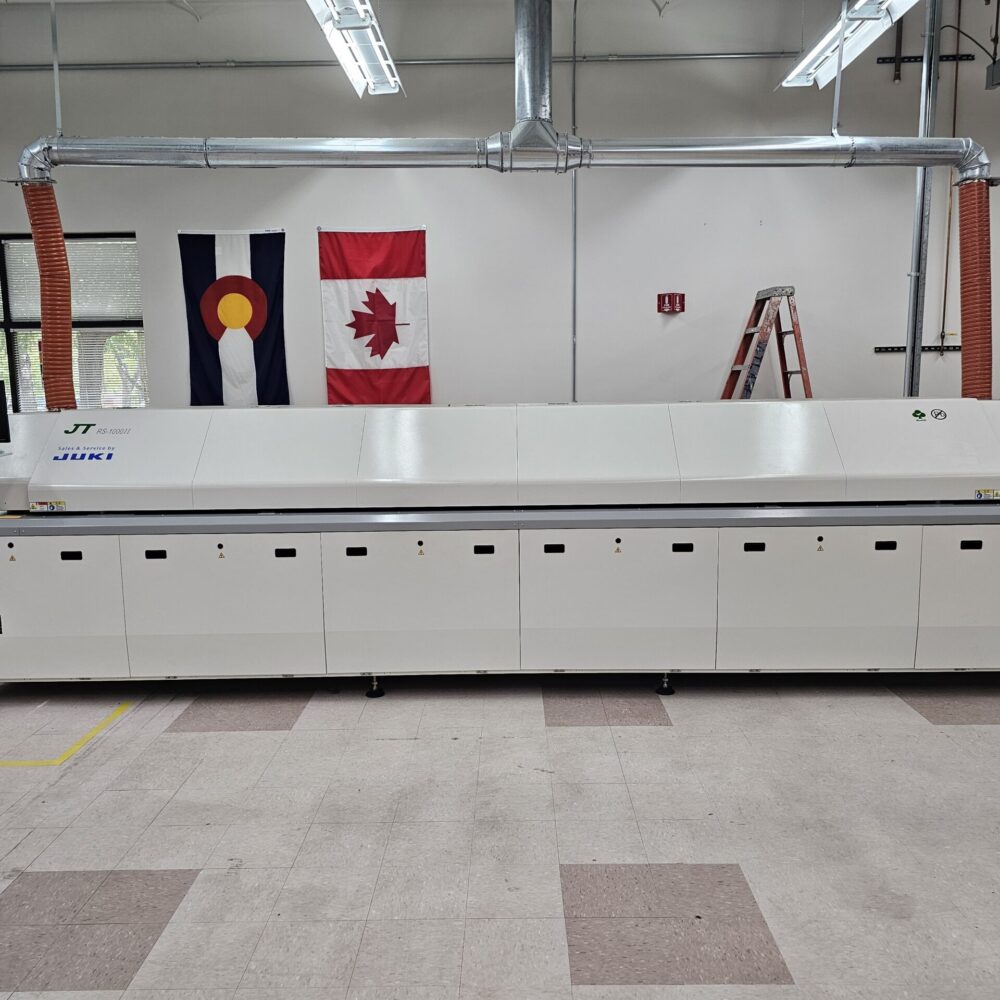

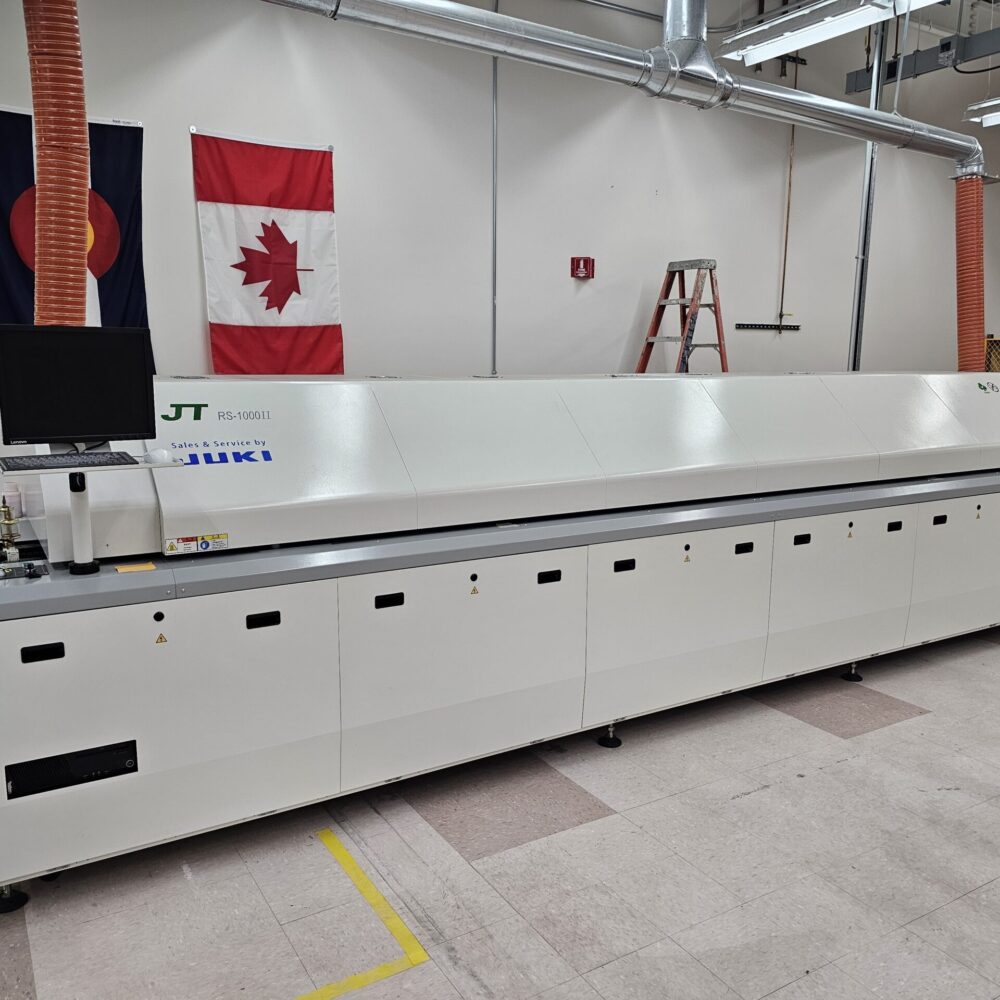

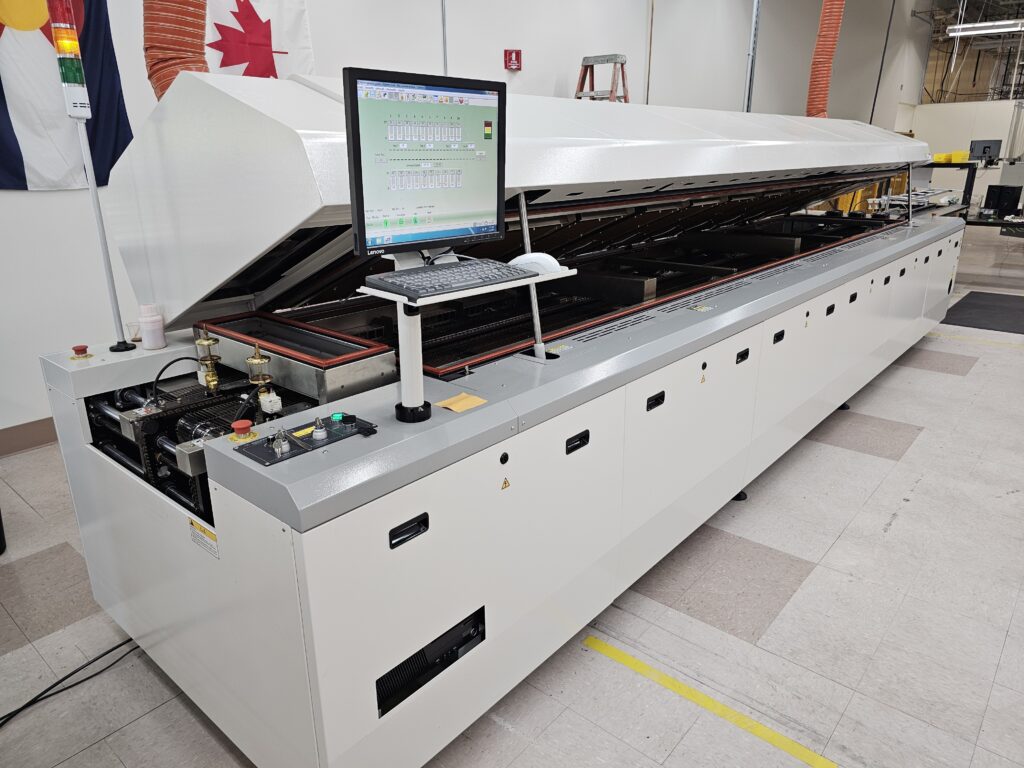

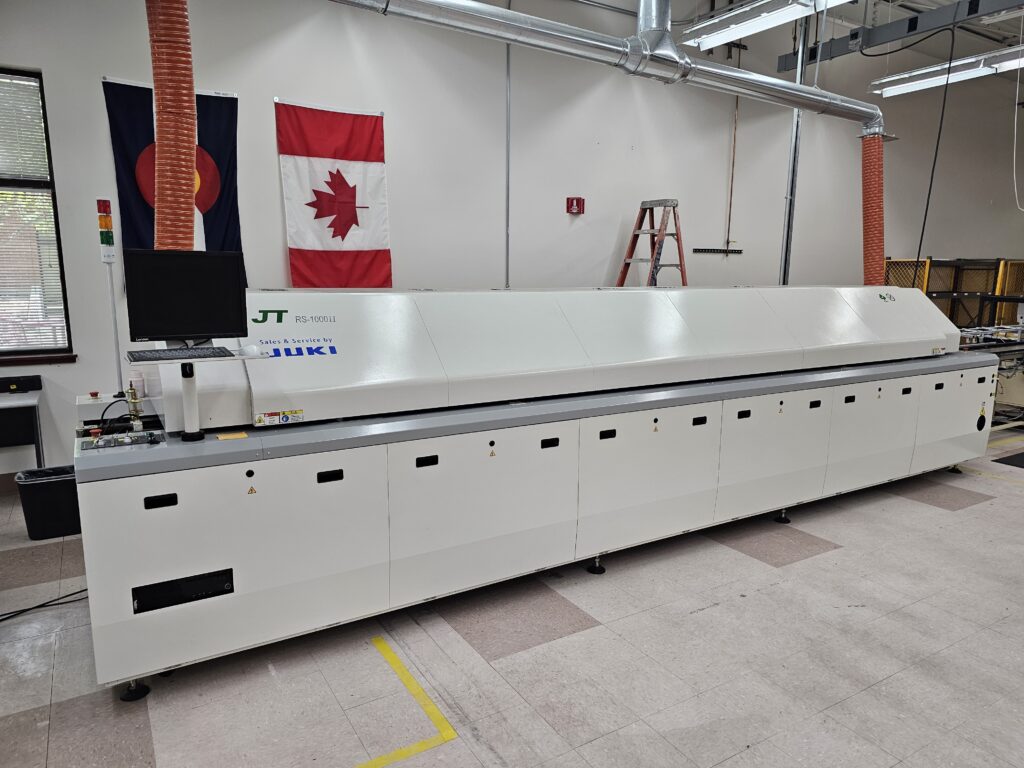

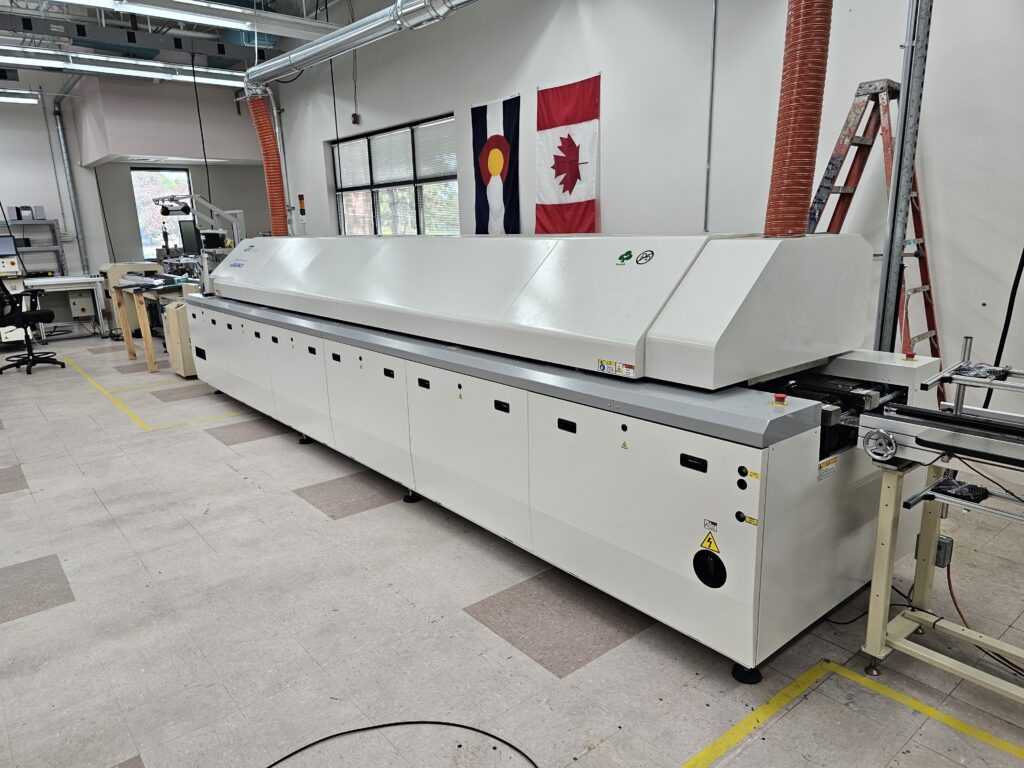

The JUKI RS-1000II is a lead-free hot air reflow soldering oven designed for precision PCB assembly. Here are some key specifications:

Year: 2016
Heating Zones: 10
Cooling Zones: 2
Process Flow: Left to right

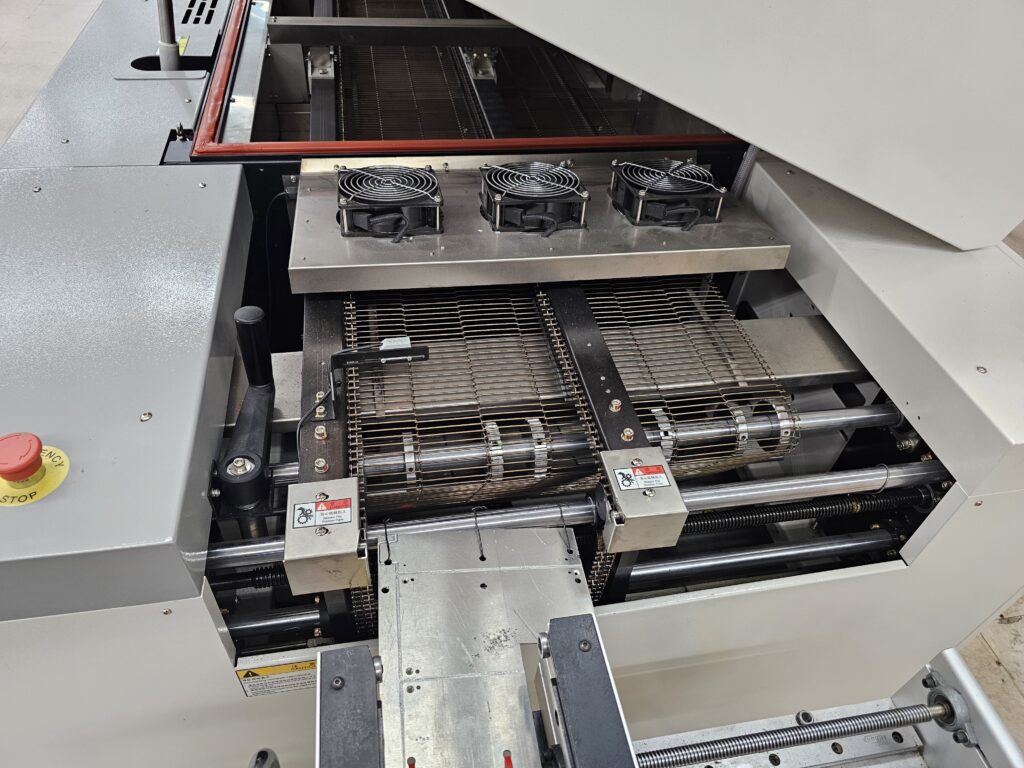

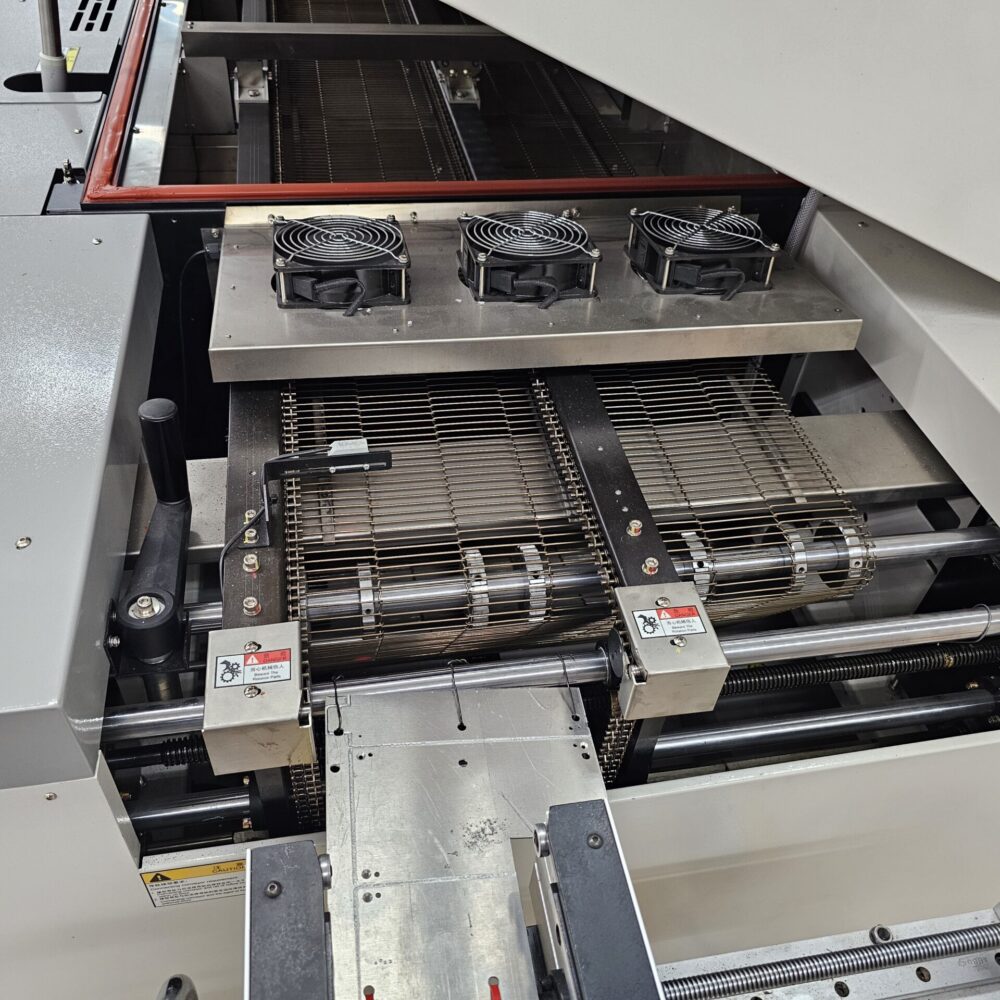

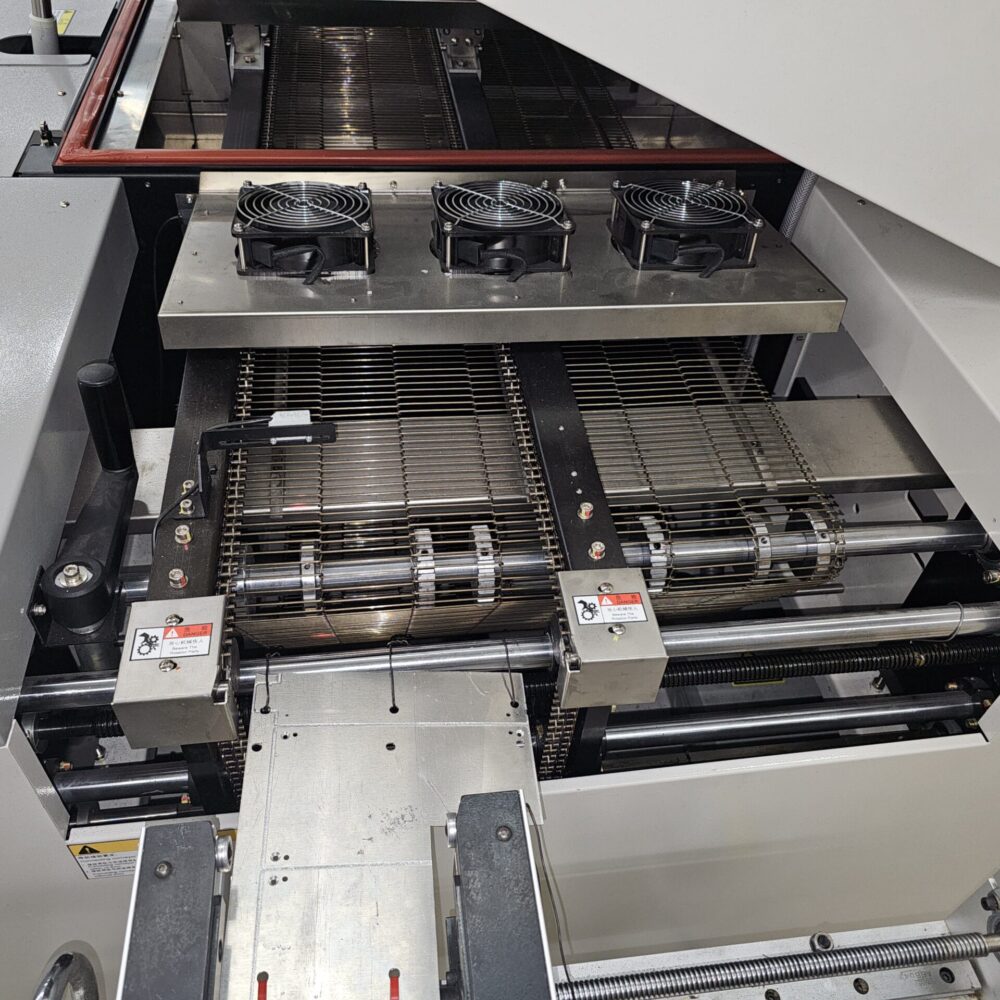

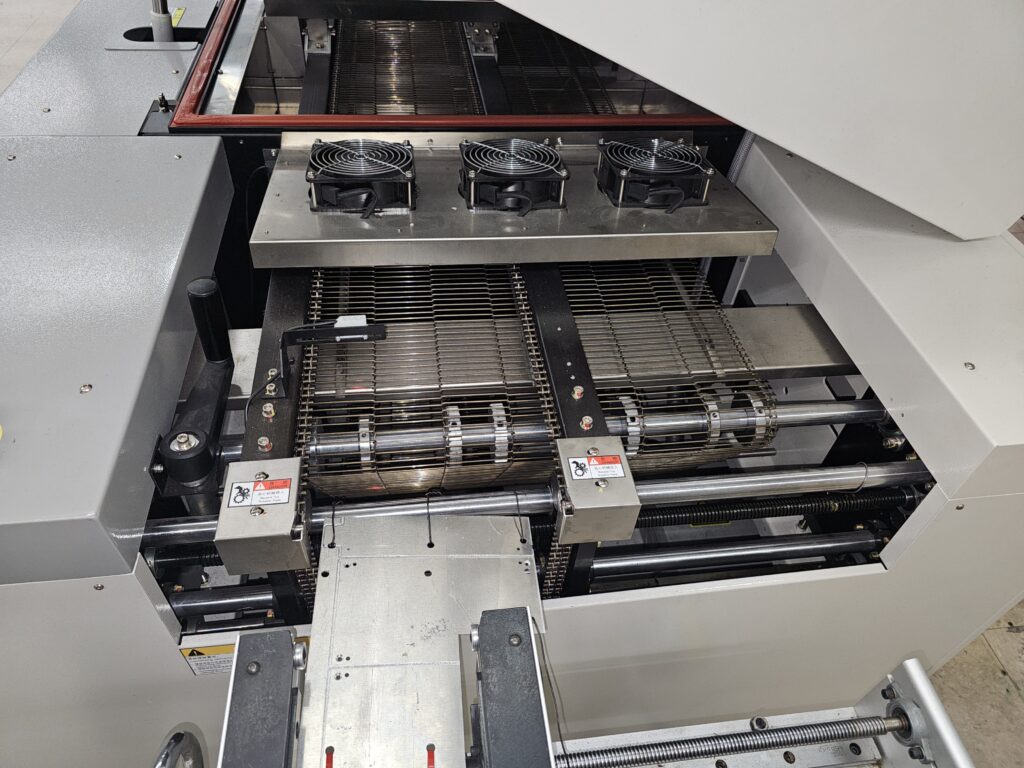

Conveyor Type: Edge rail & mesh belt

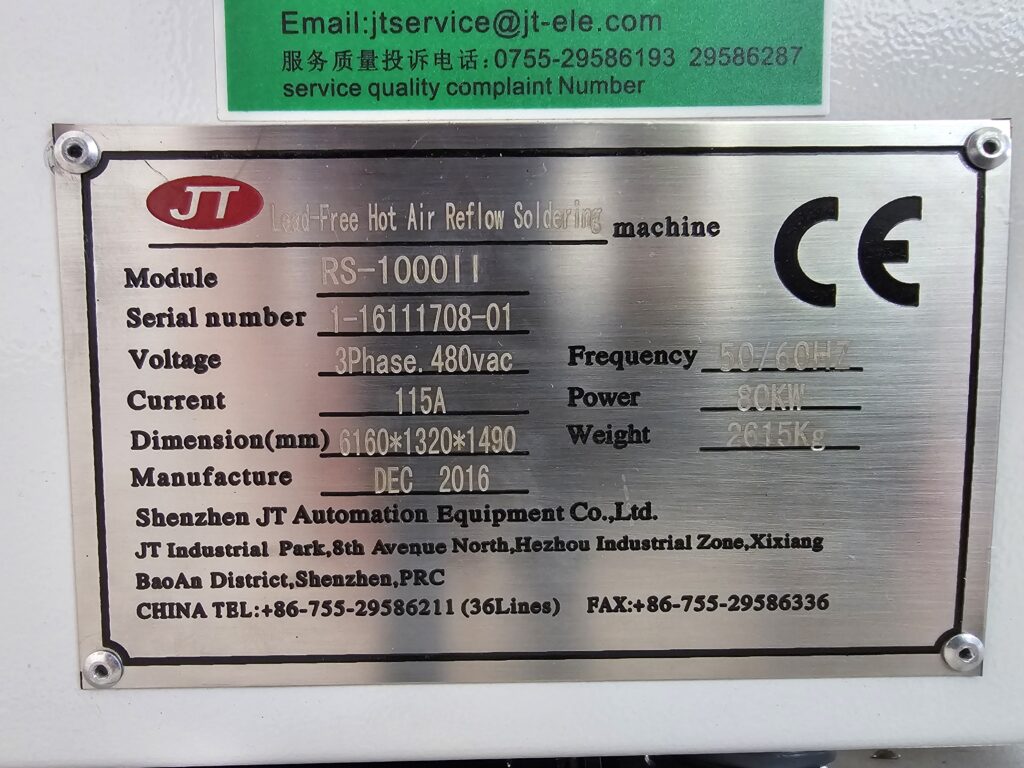

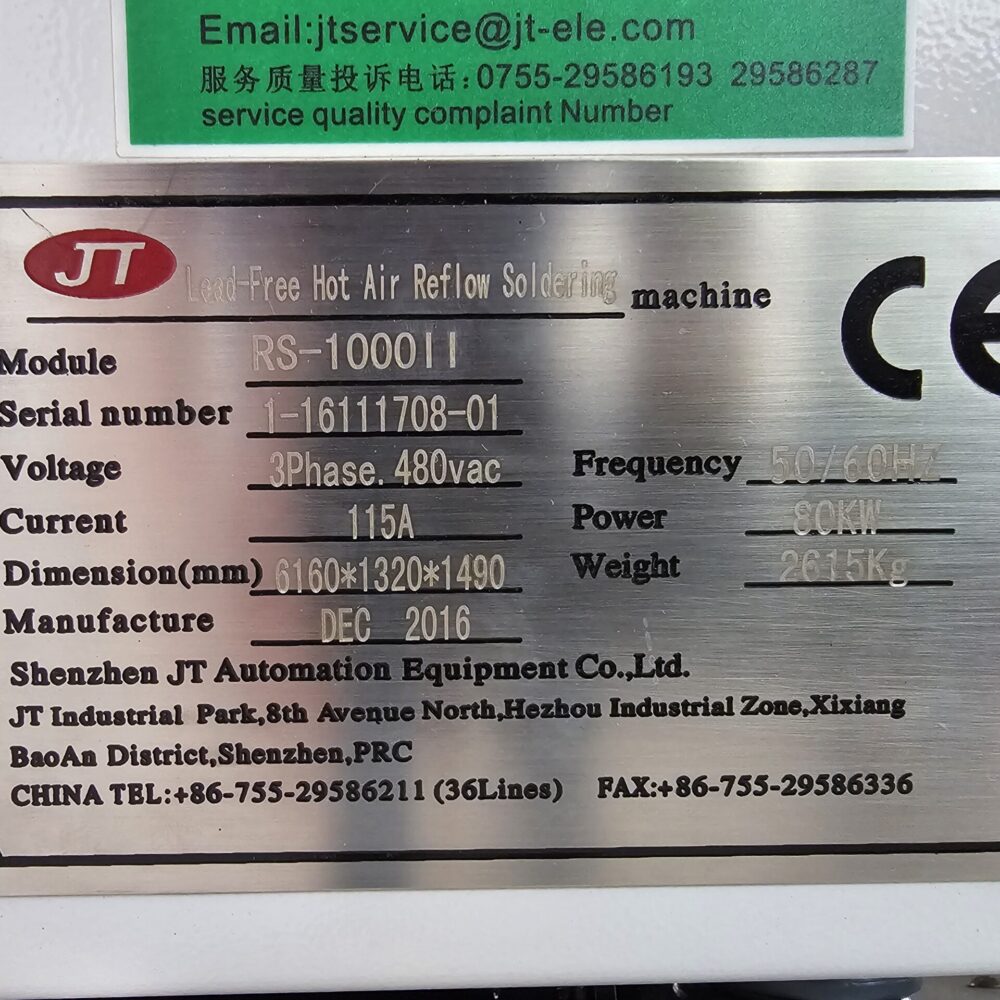

Power Requirements: 480V AC, 3-phase, 115A, 80 KW
Machine Dimensions: 6160 x 1320 x 1490 mm
Weight: 5700 lbs

Full Specifications:

Includes KIC AFP (Auto-Focus Power)

Option: High Temp Option 350ºC

– Dimensions: 6,104 (L) x 1,417 (W) x 1,524 (H) mm
– Weight: Approx 2,500 Kgs

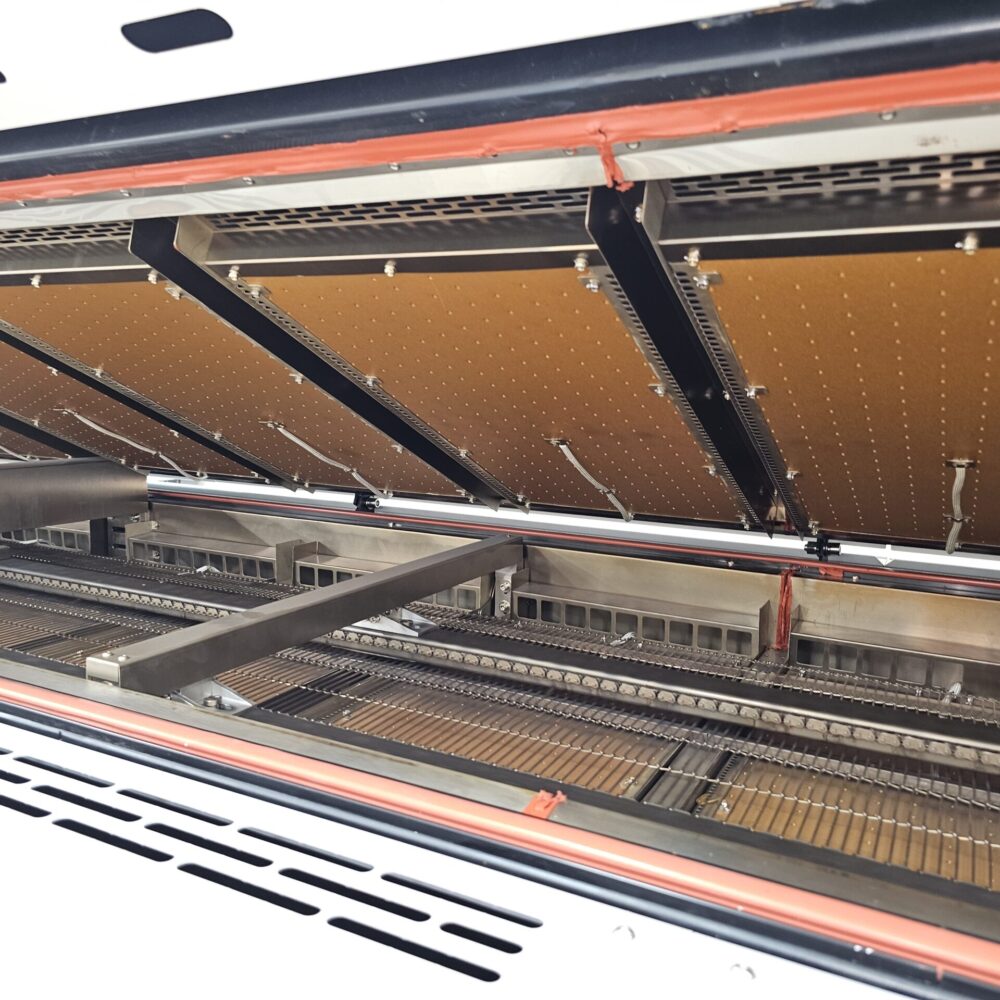

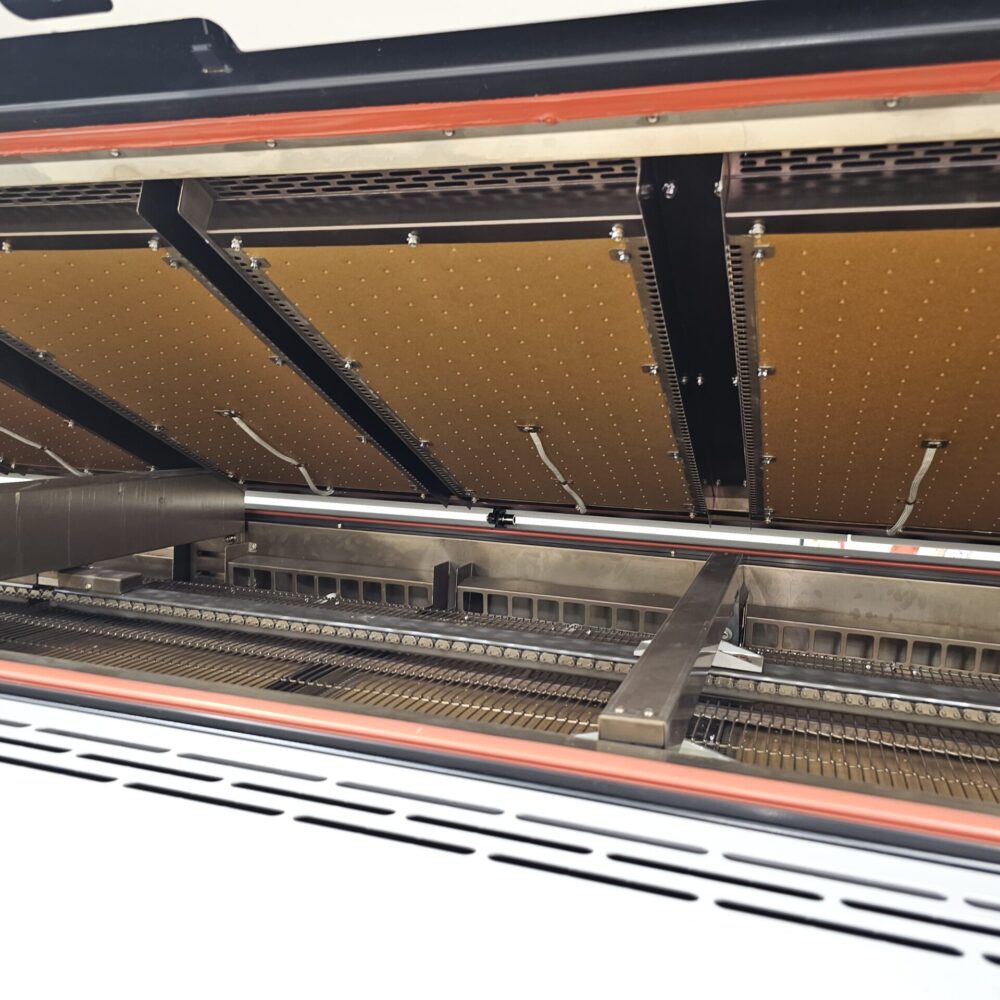

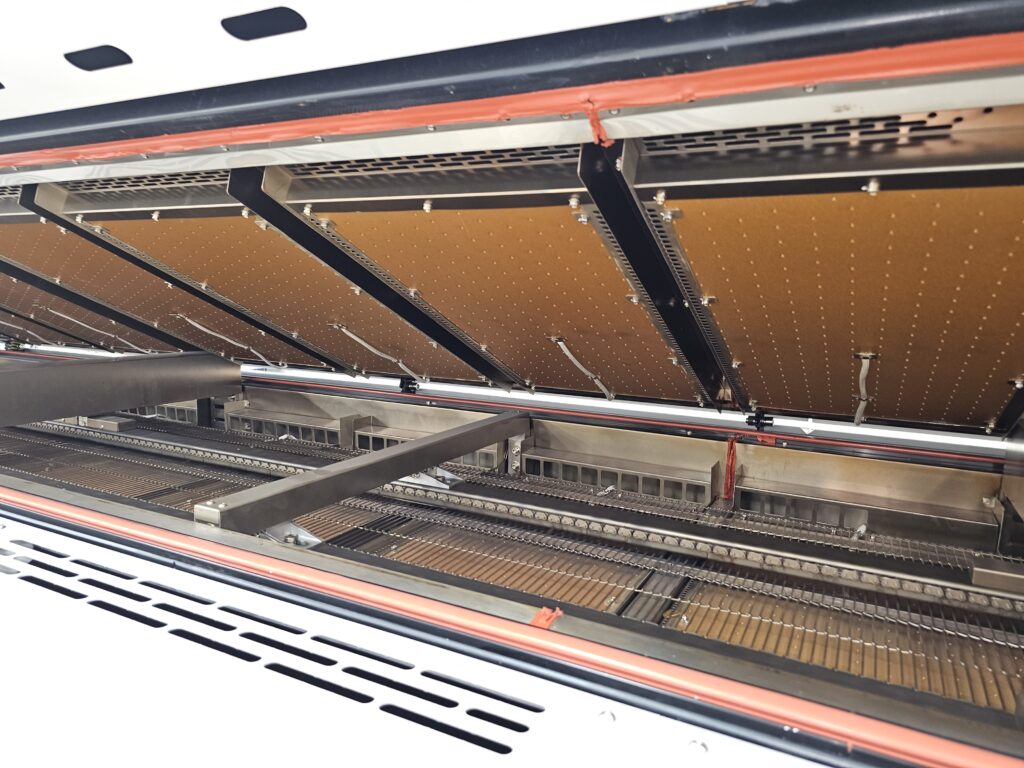

– Heating Zones: Top 10, Bottom 10

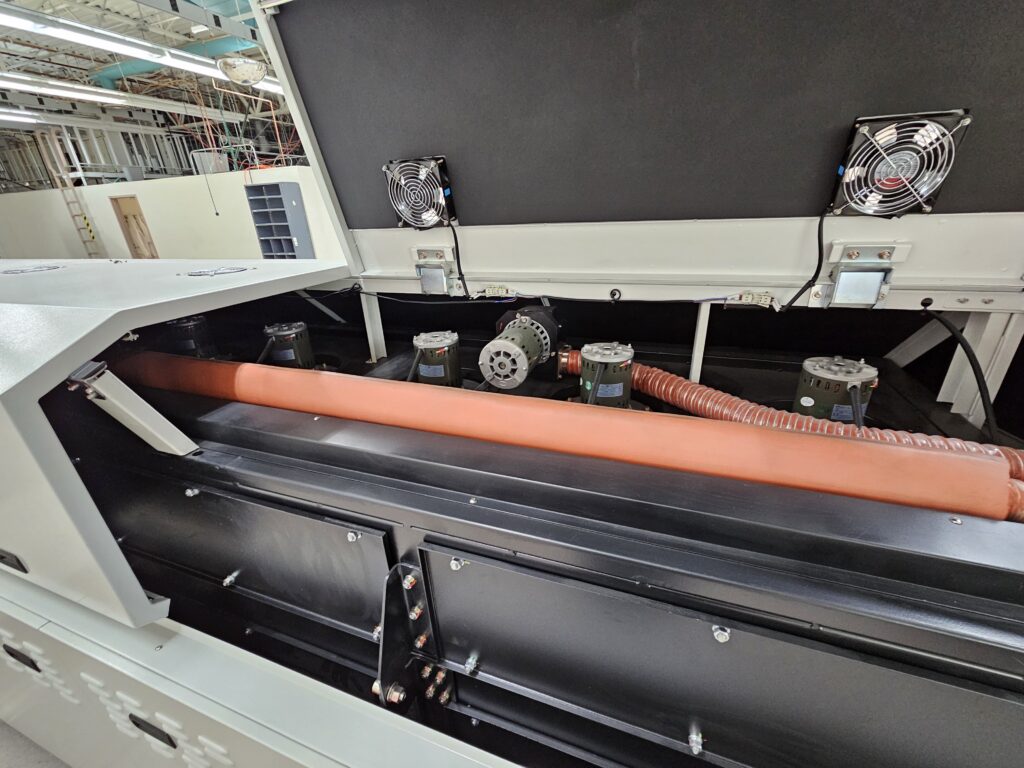

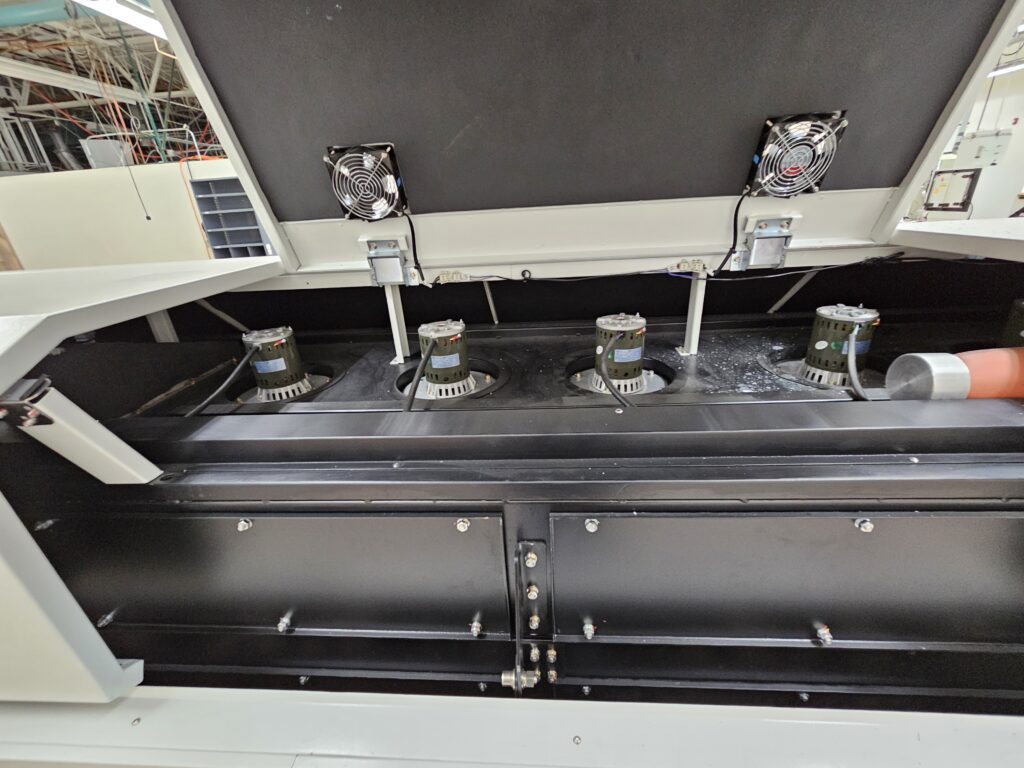

– Cooling Zones: 2 (top, internal) force air cool

– Effective heating zone length: 3,891mm
– Total power: 83KW
– Start up power: 42KW
– Running power: about 15KW
– Temp range: room temp to 300°C (Option: High Temp Option 350ºC)
– Temp control: PID close loop control + SSR driving
– PCB top and bottom compo max. height: 25mm
– PCB width: 50 – 450mm
– Conveyor speed (mm/min): 300 – 2,000

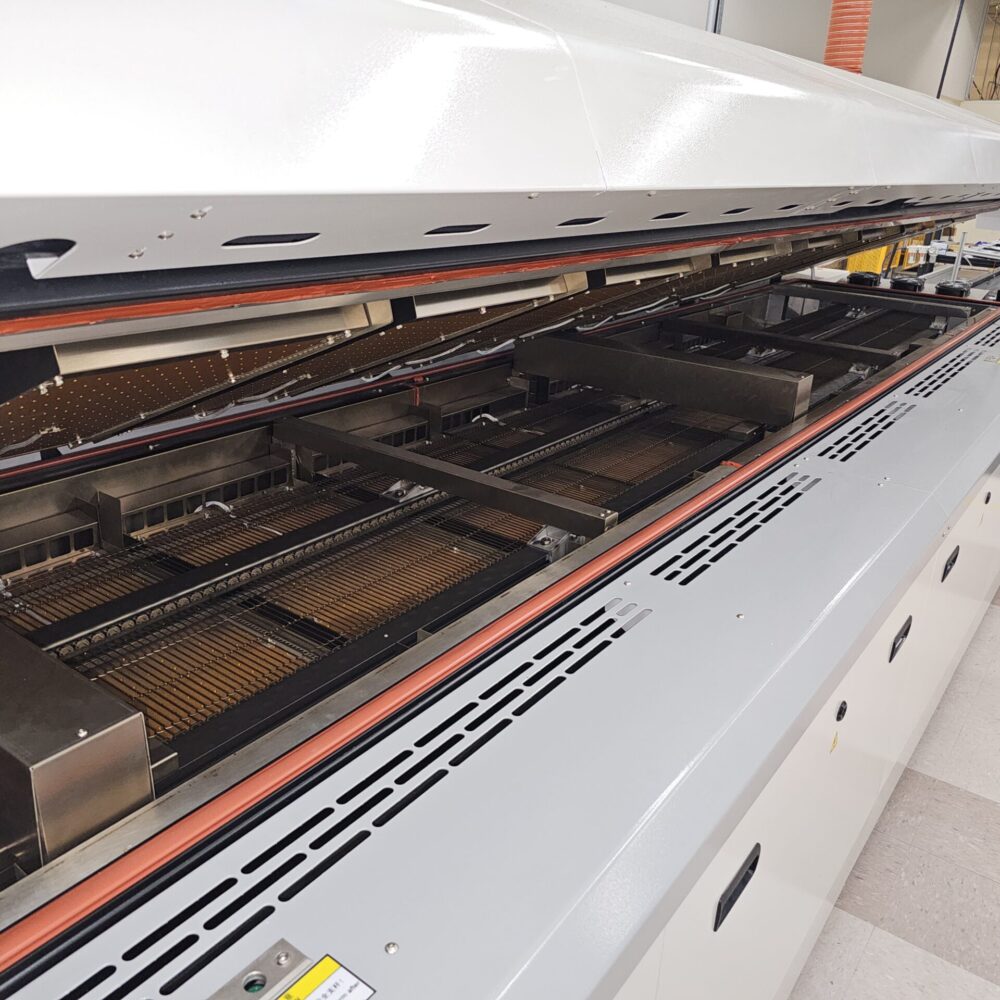

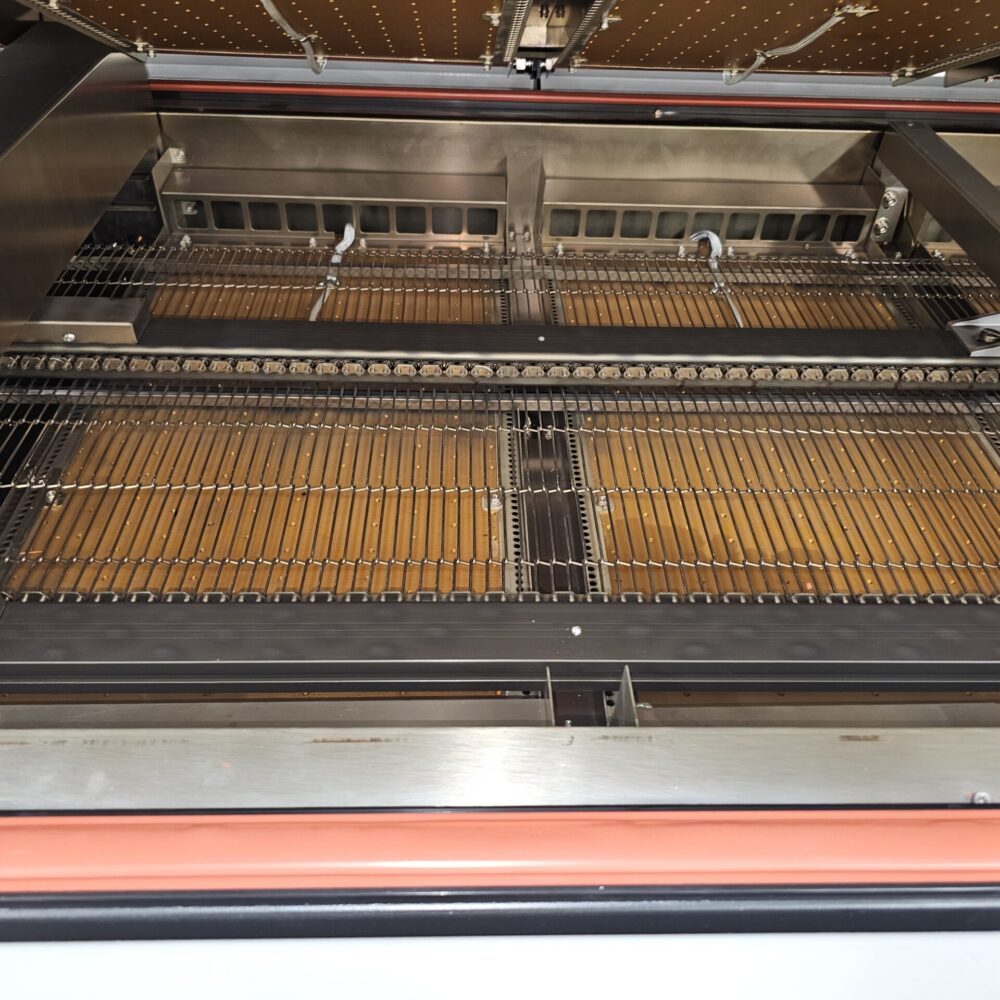

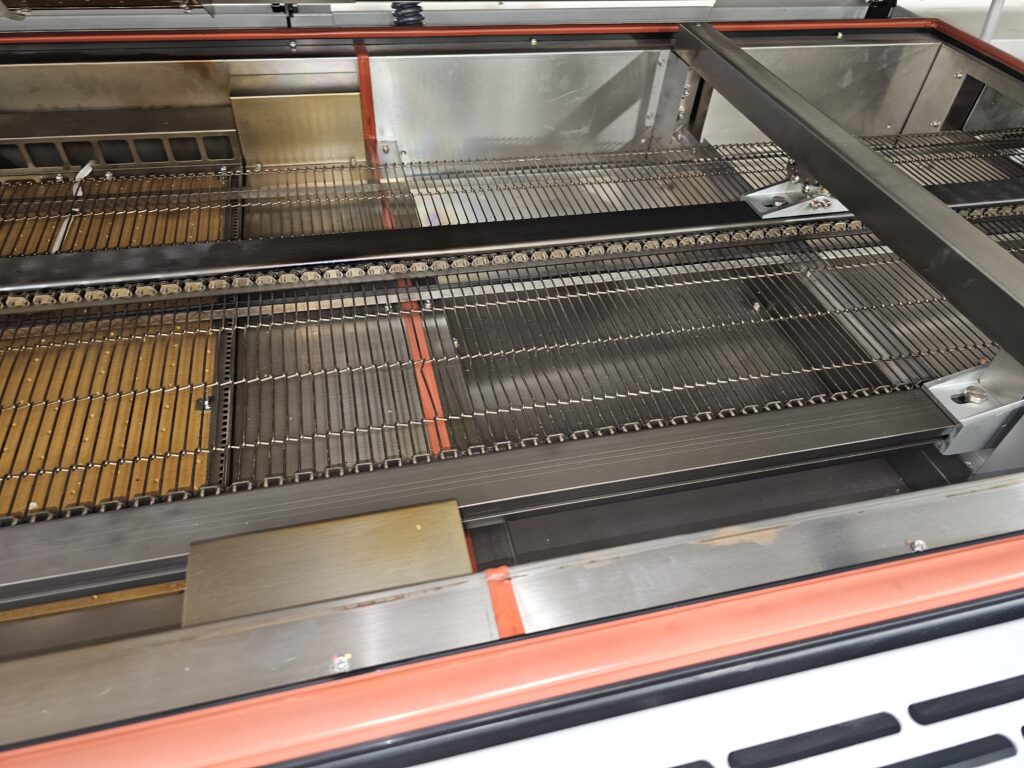

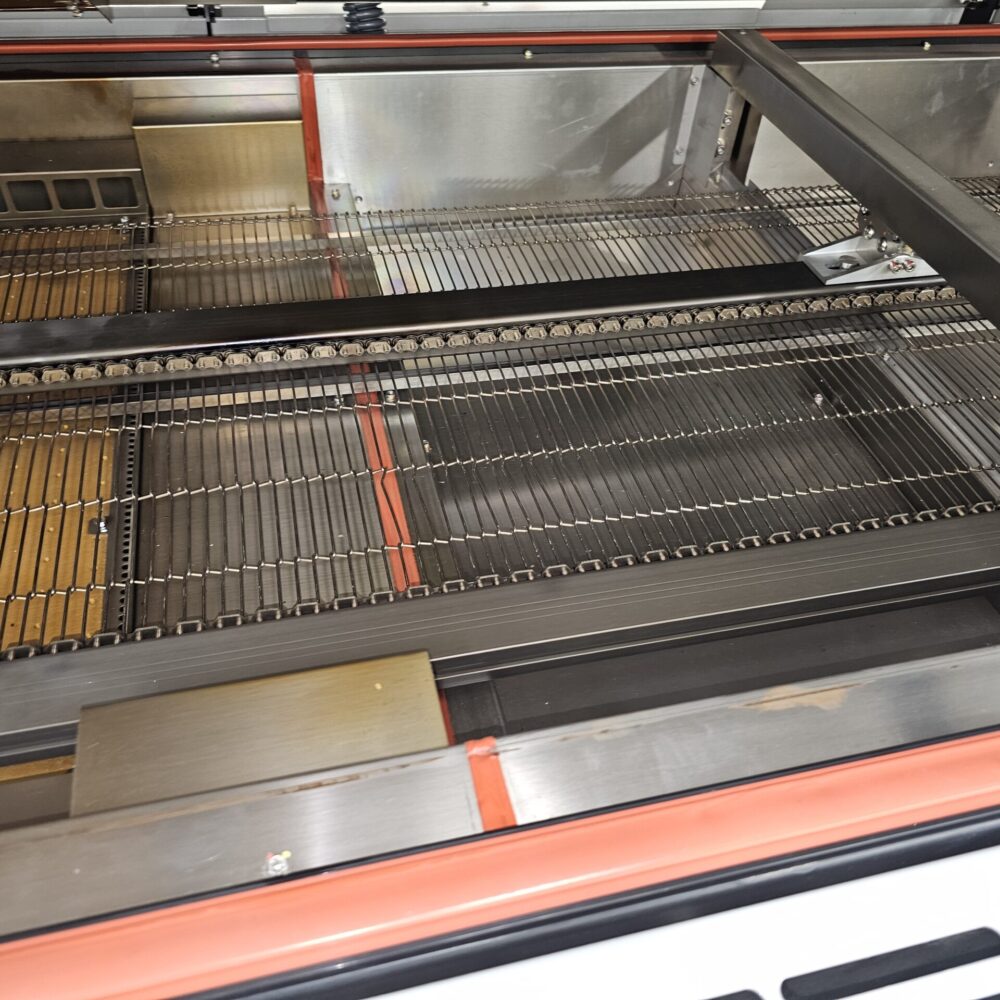

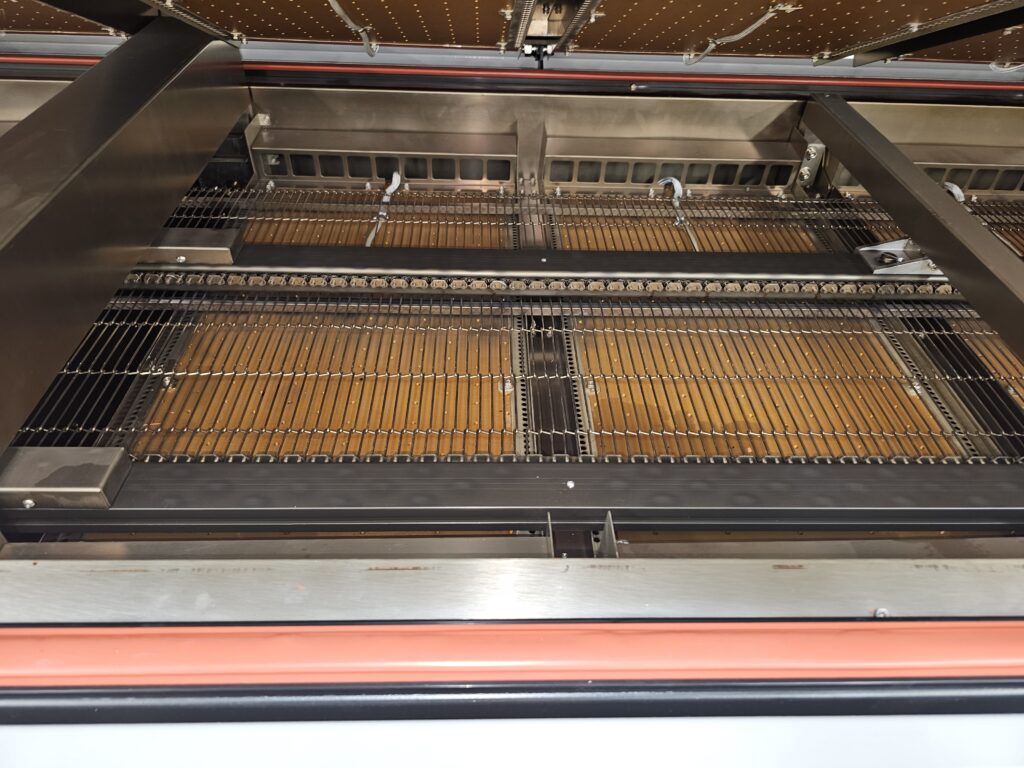

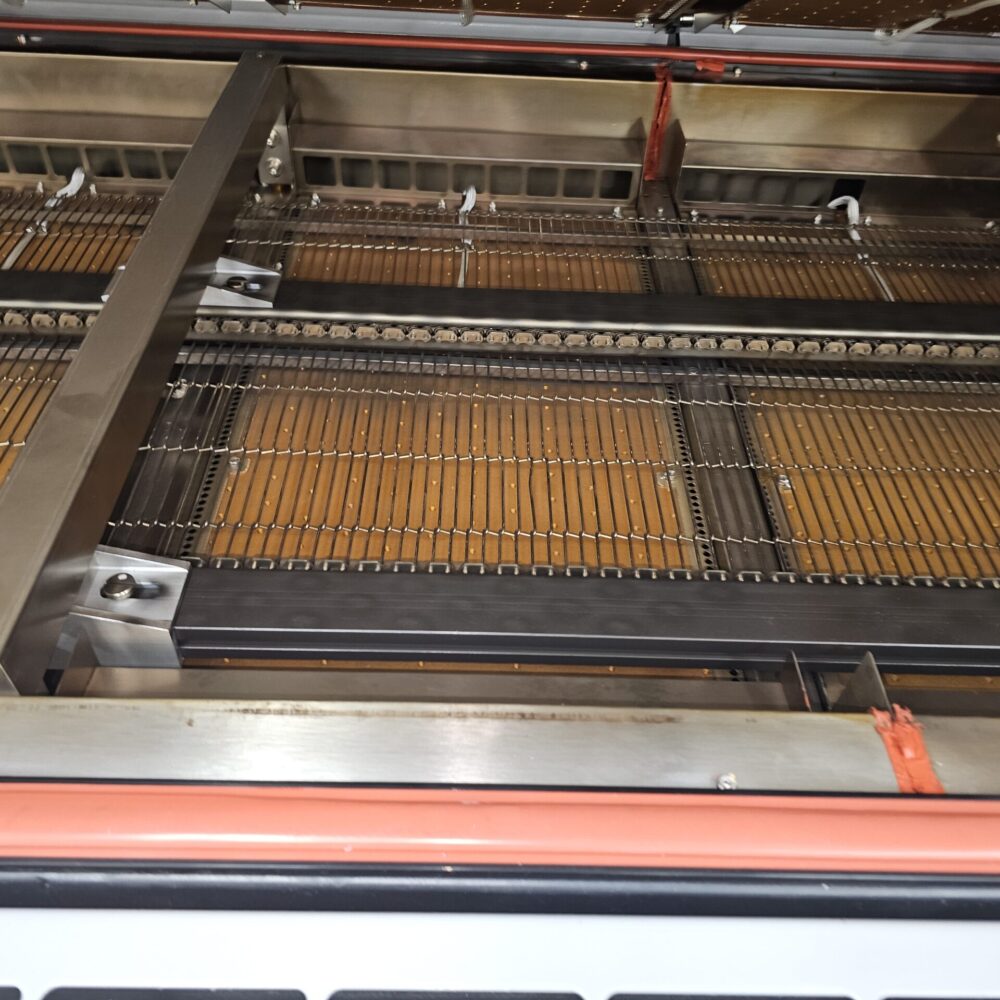

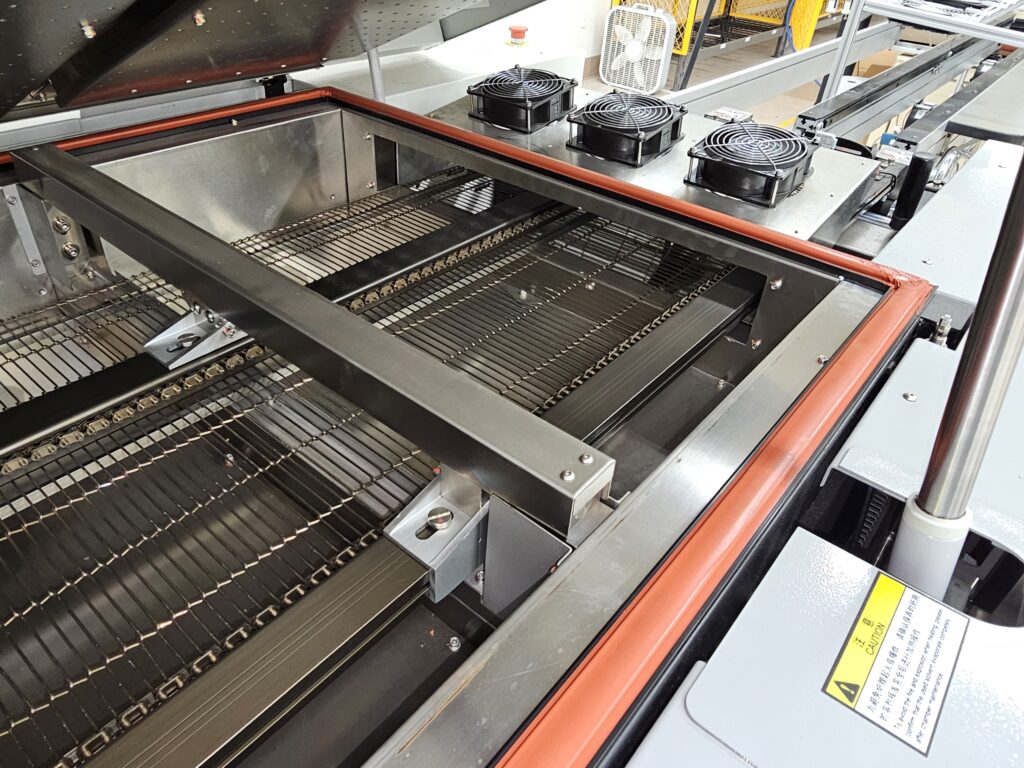

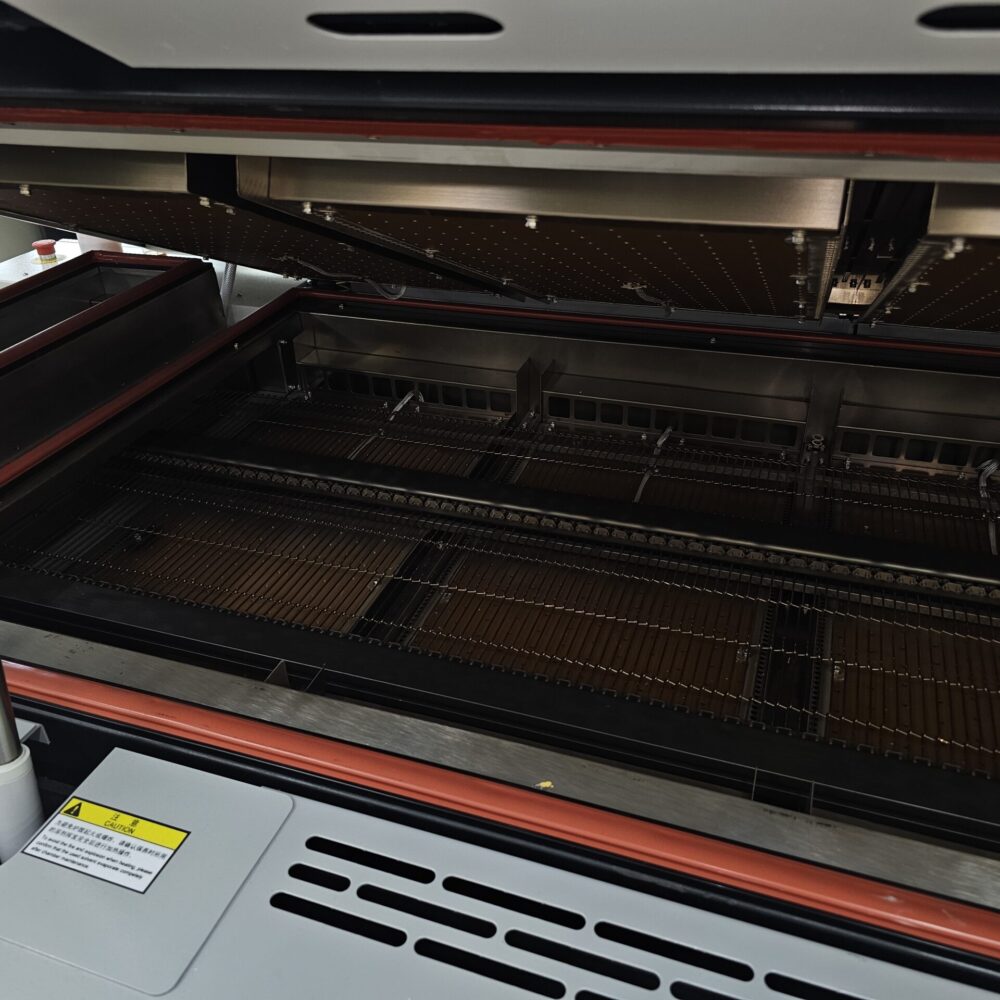

– Conveyor type: Mesh & Chain with Edge Rail
– Conveyor height: 950mm ± 20mm
– Conveyor direction: Left to right, front fix

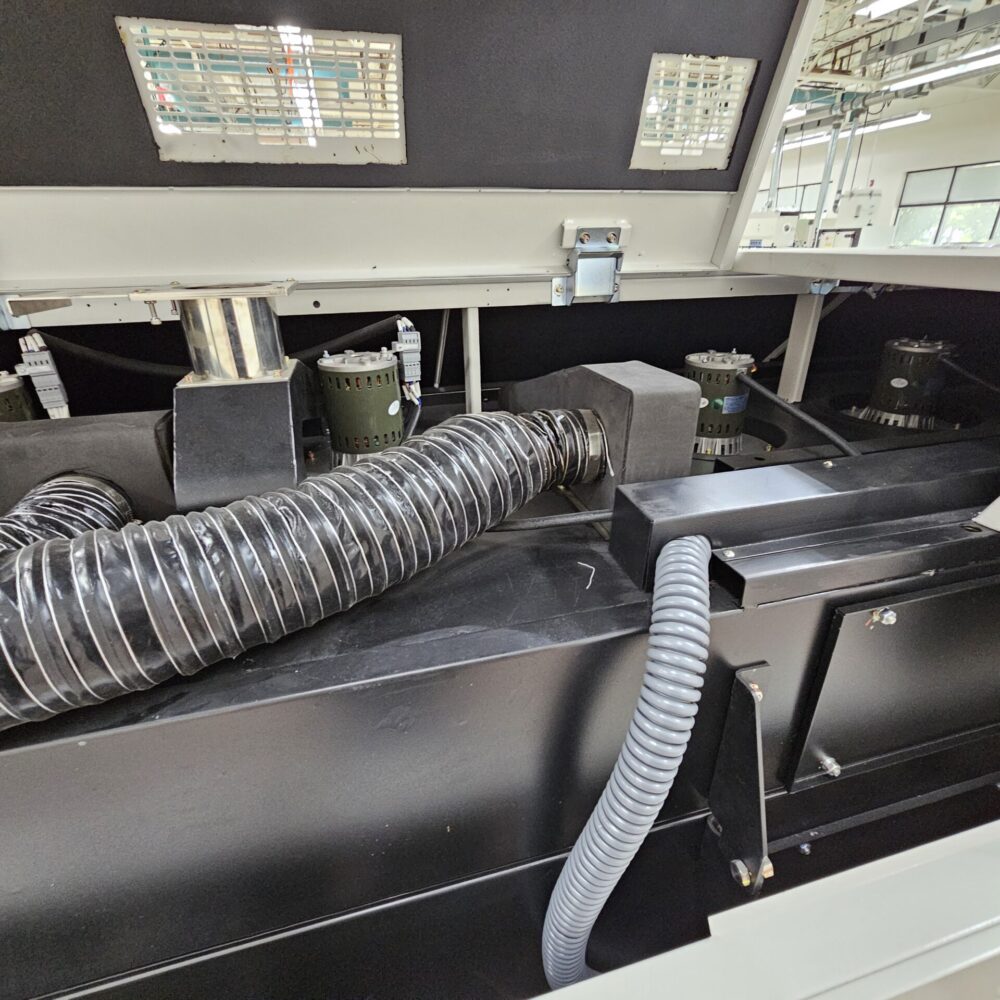

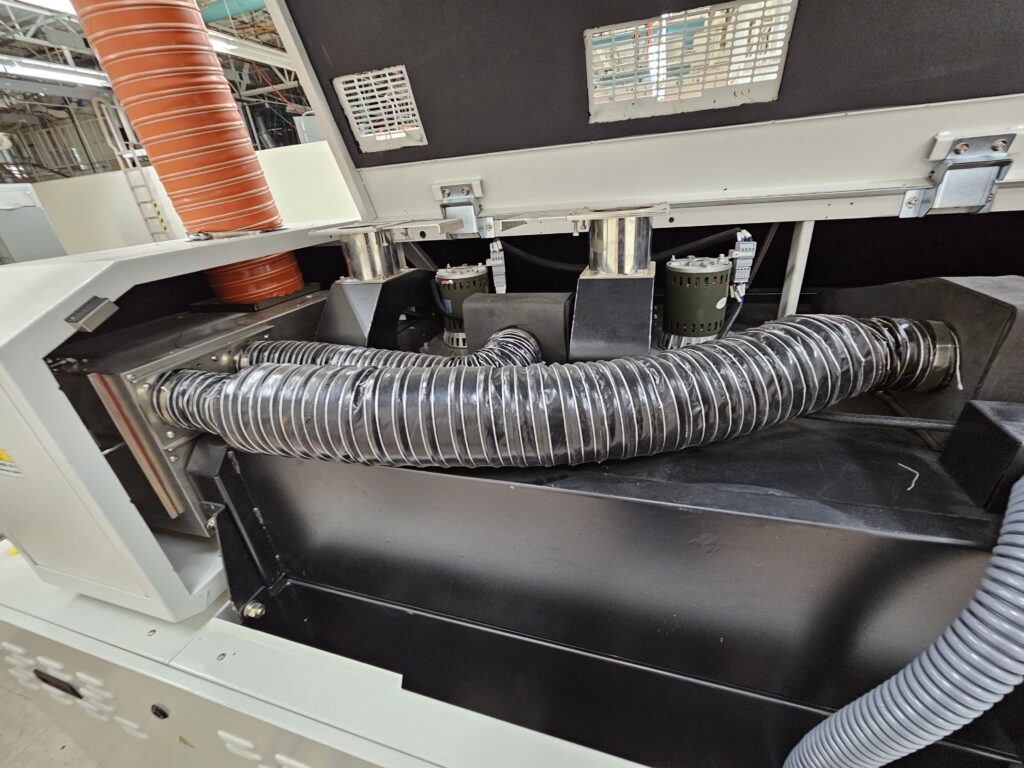

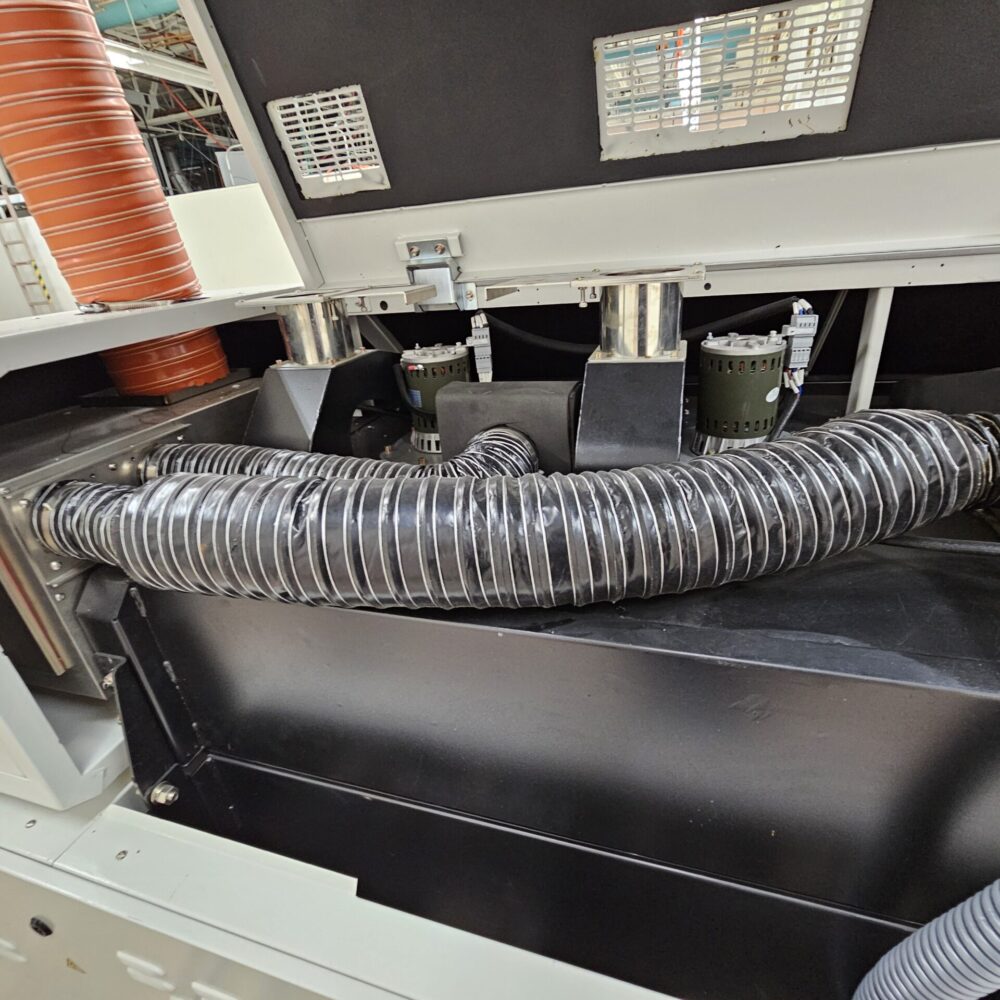

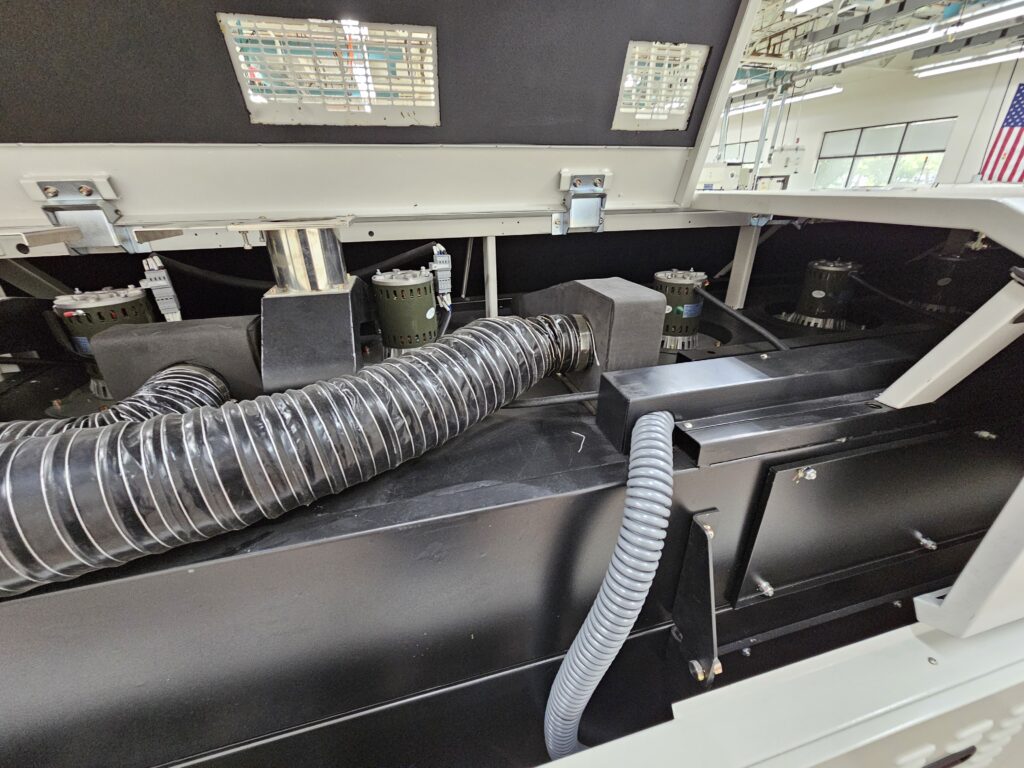

– Exhaust flow rate: 10m³/min x 2 sets
– Conveyor width adjustment: Motorized

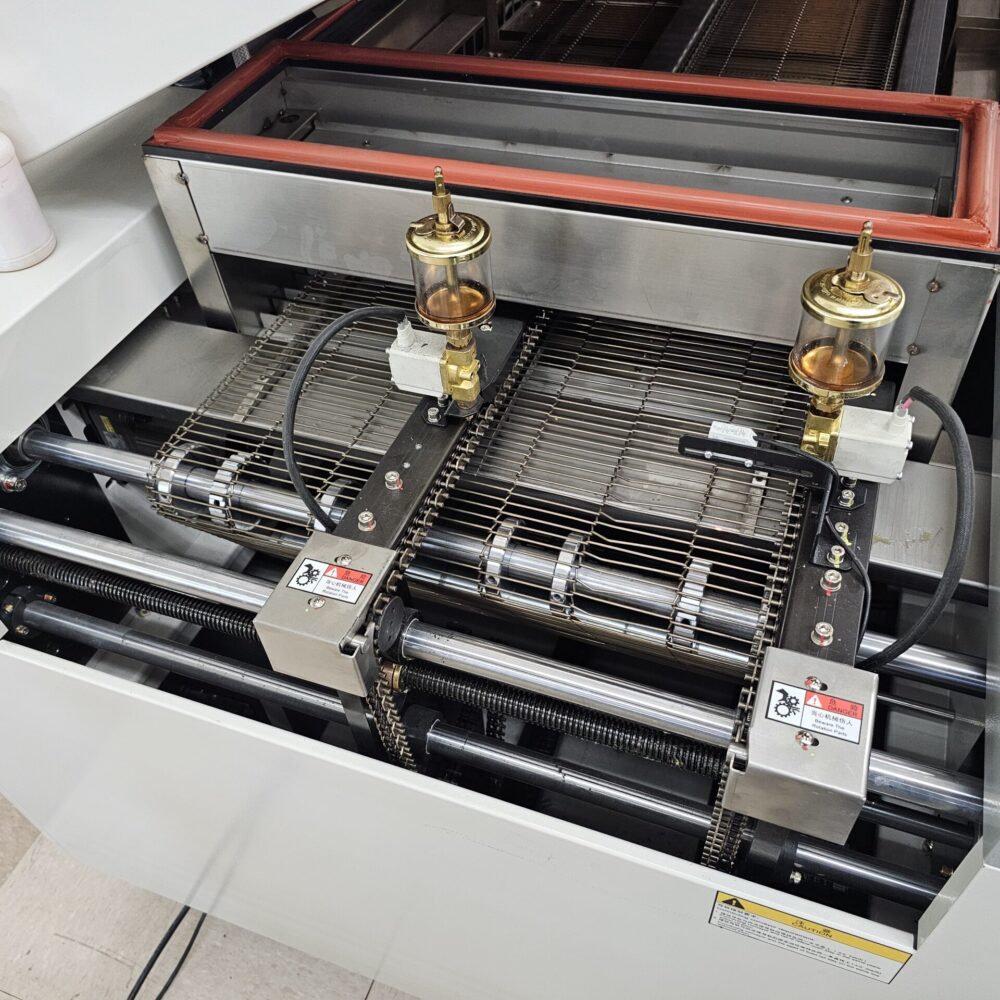

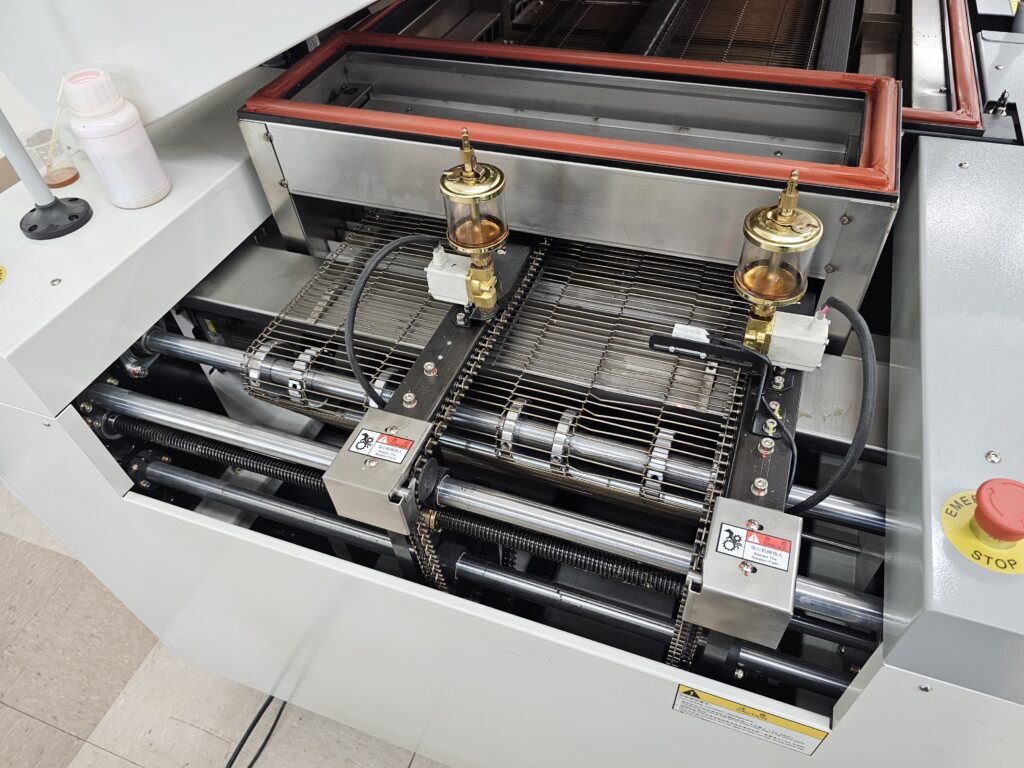

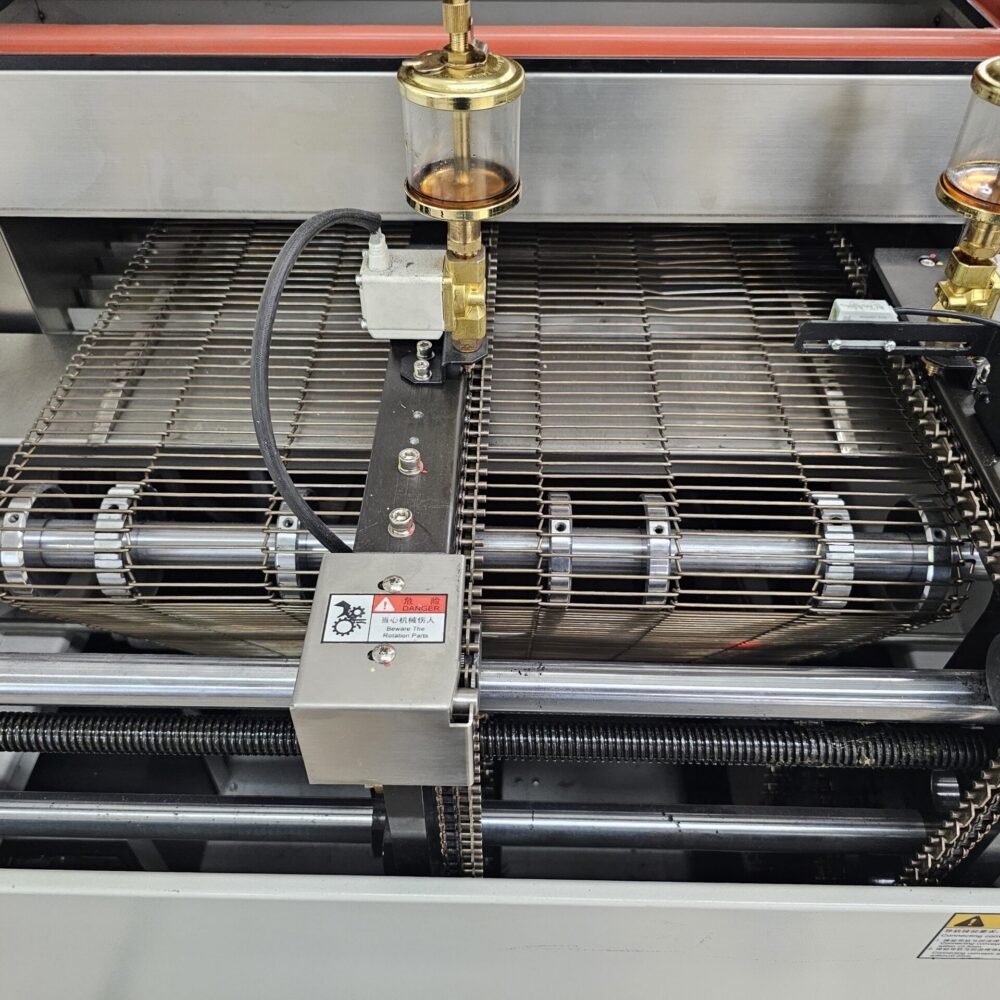

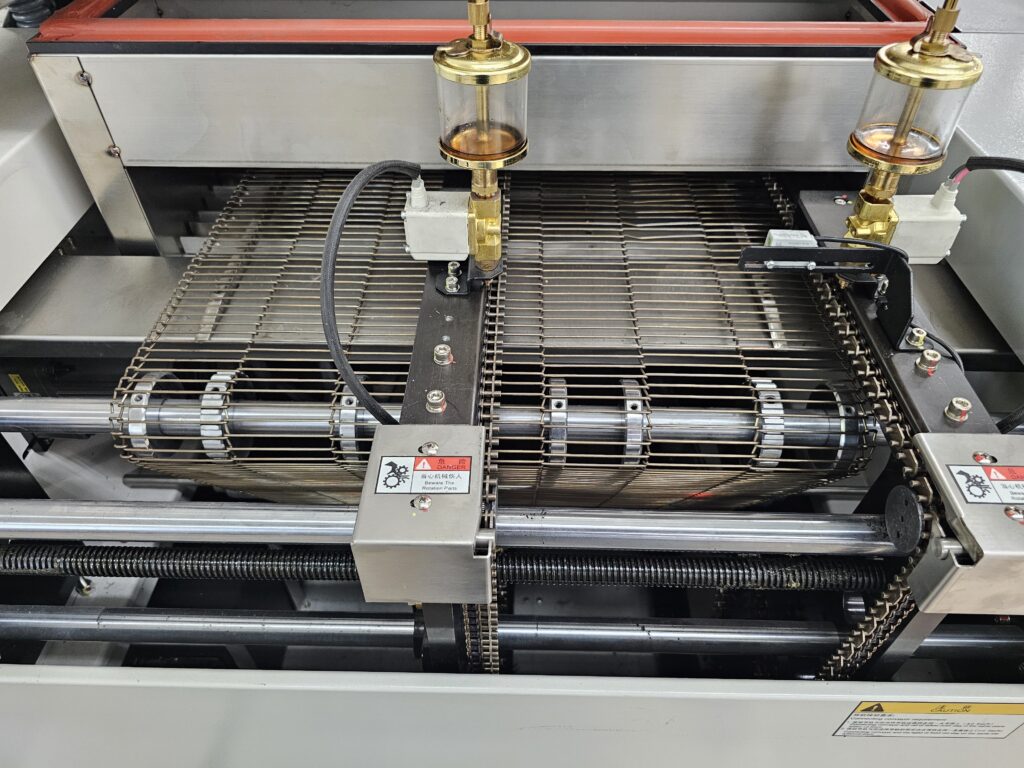

– Auto/manual conveyor chain lubrication
– Temperature control Precision: ±1ºC
-Automatic Timer
– Automatic system start up, shut down

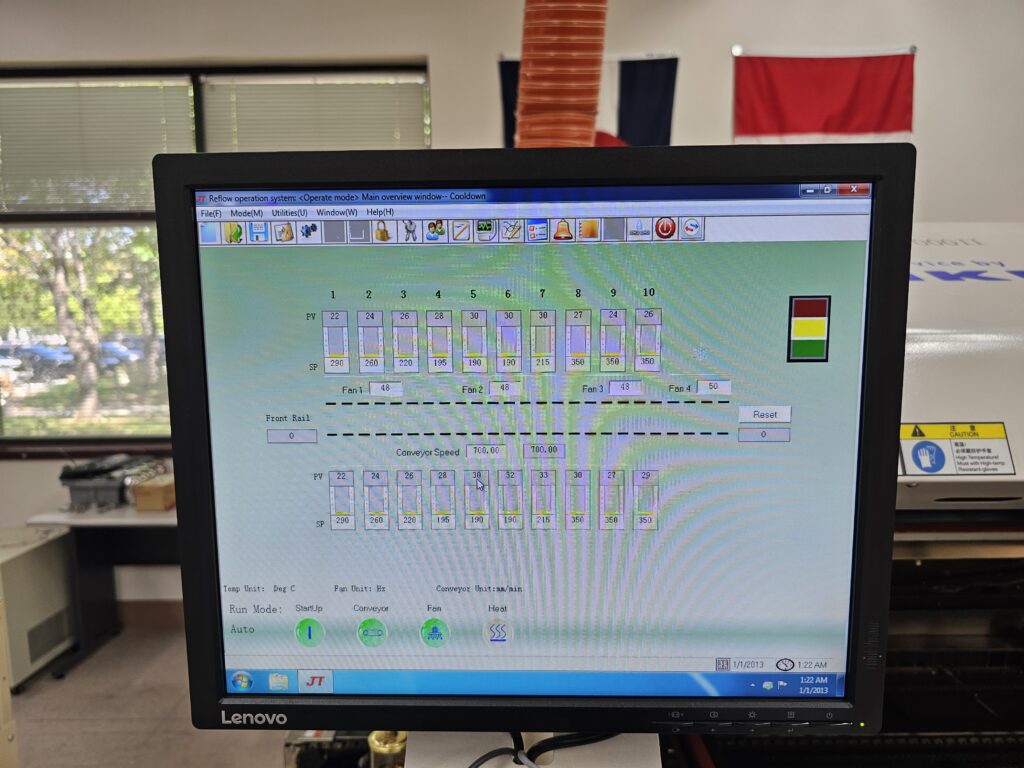

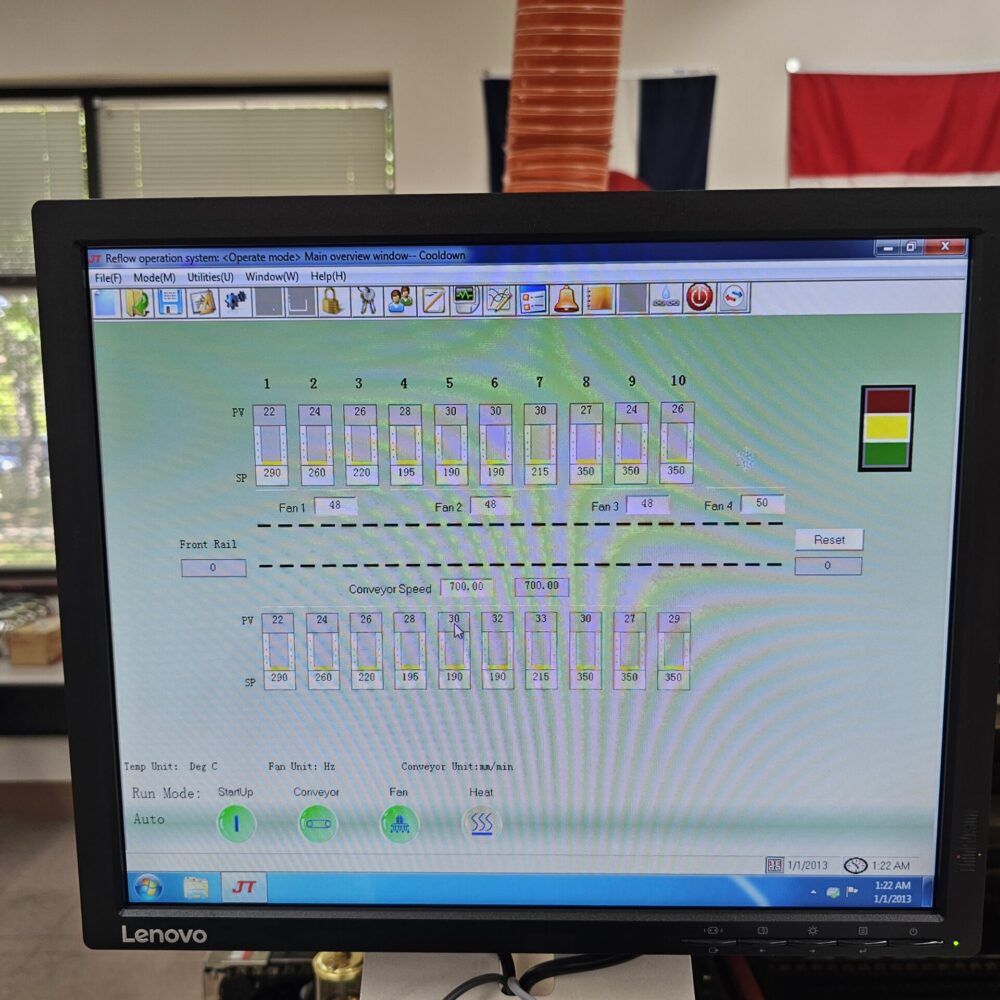

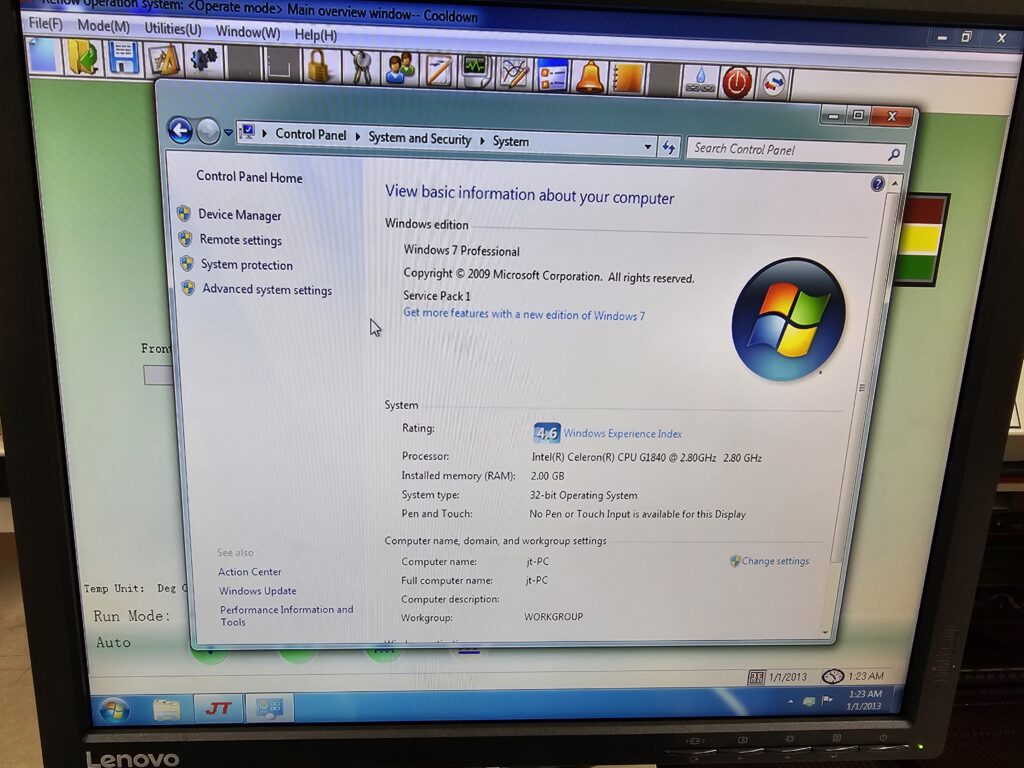

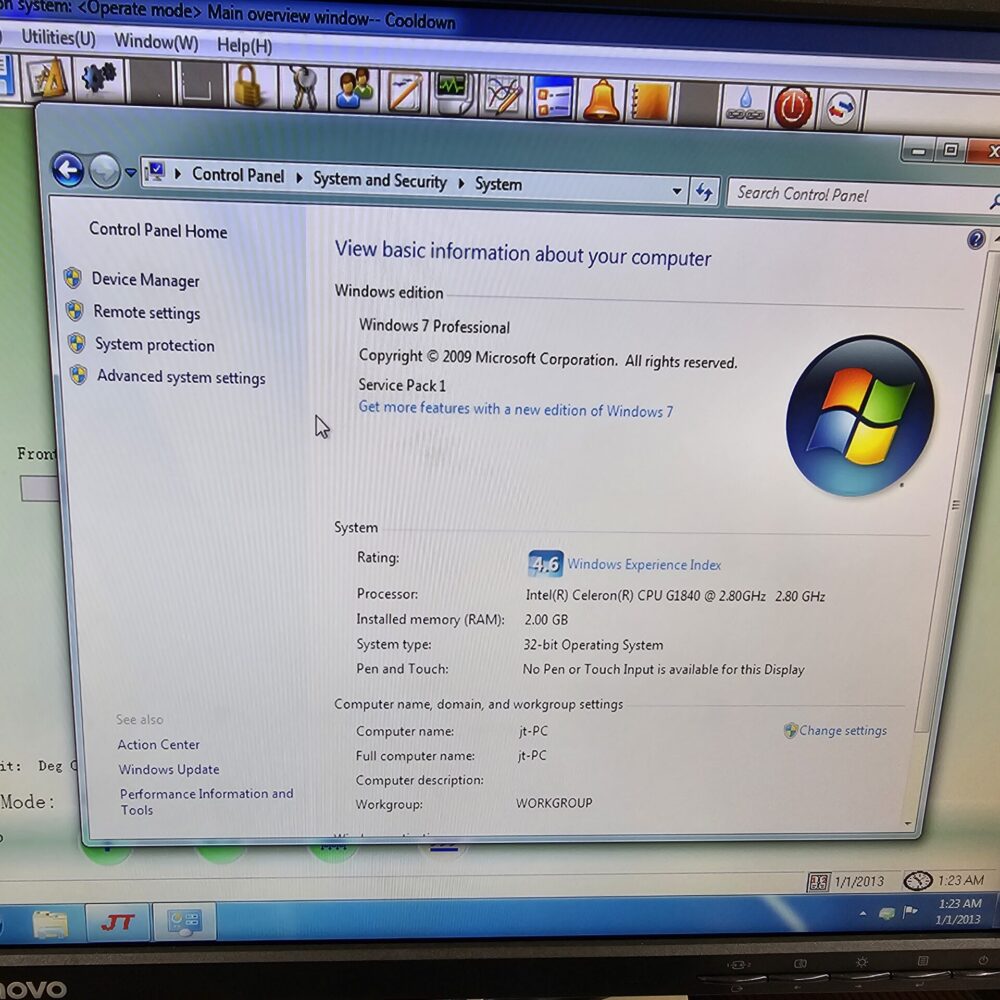

– OS: Windows 7
– UPS (Uninterrupted power supply)

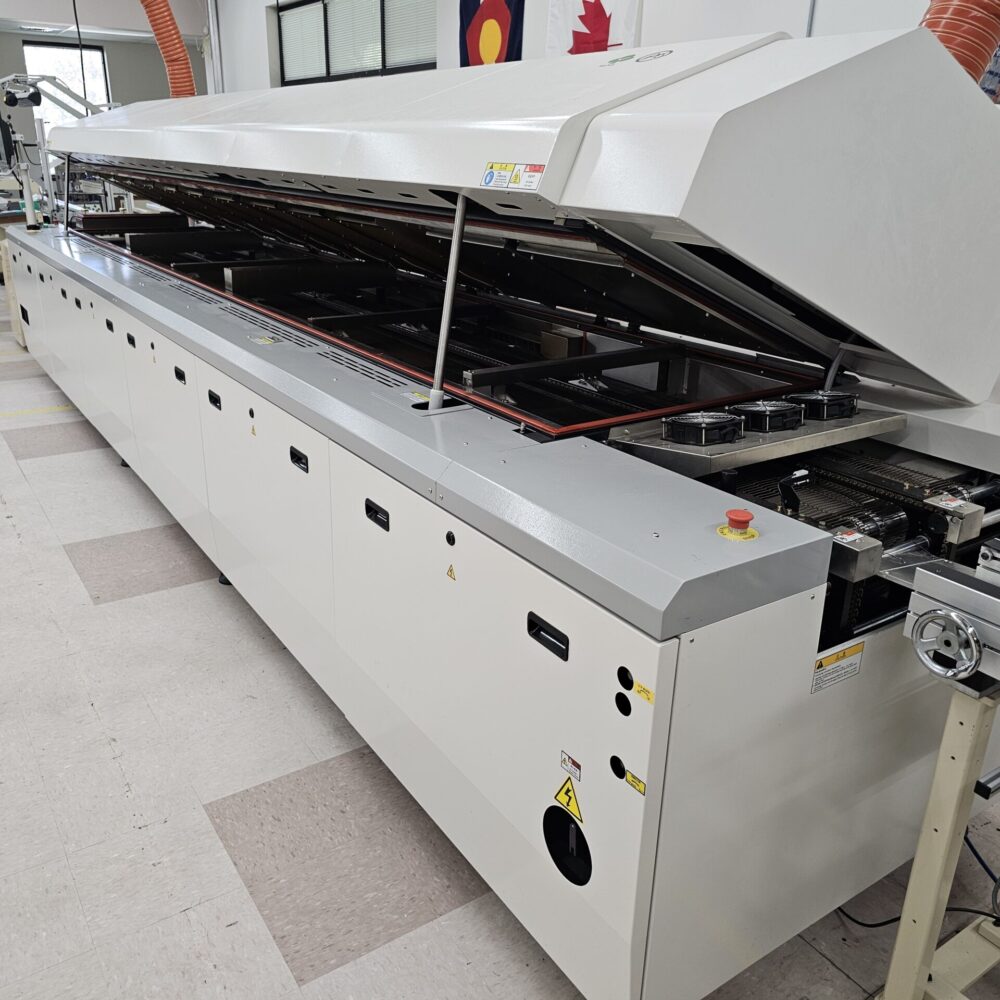

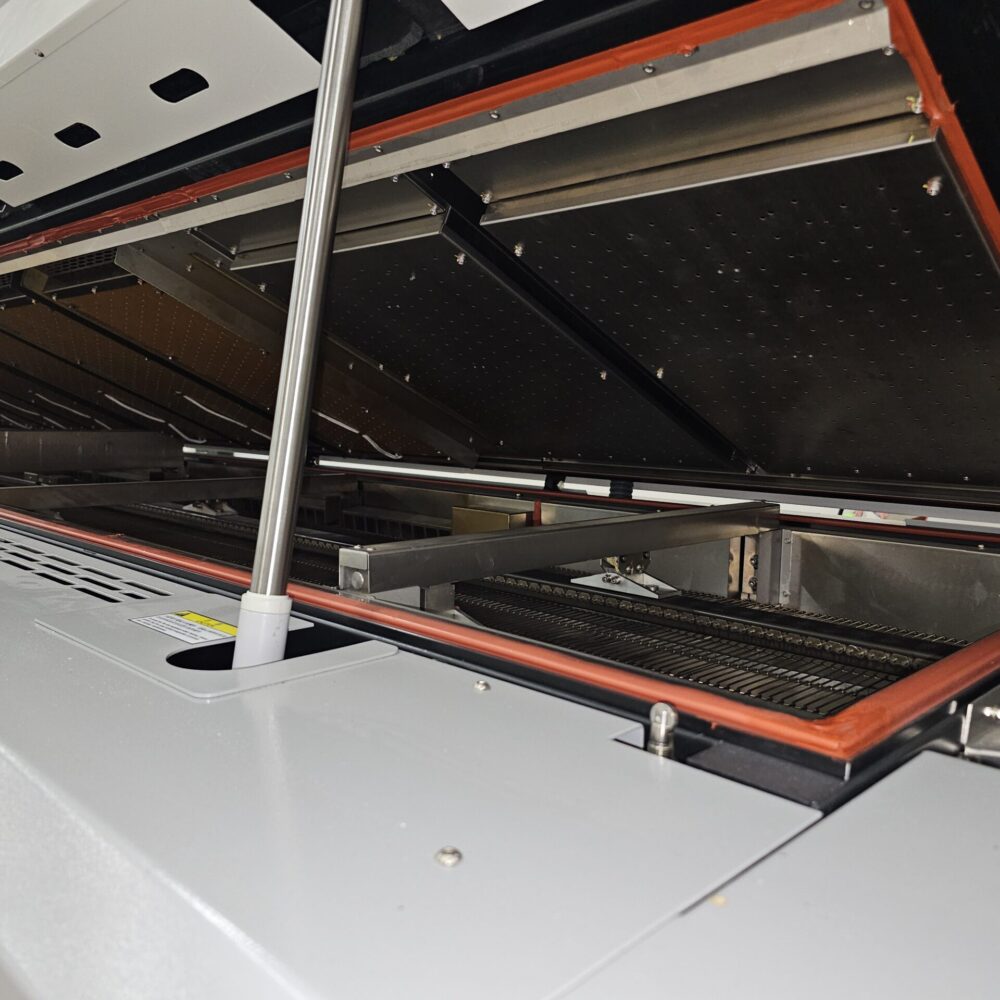

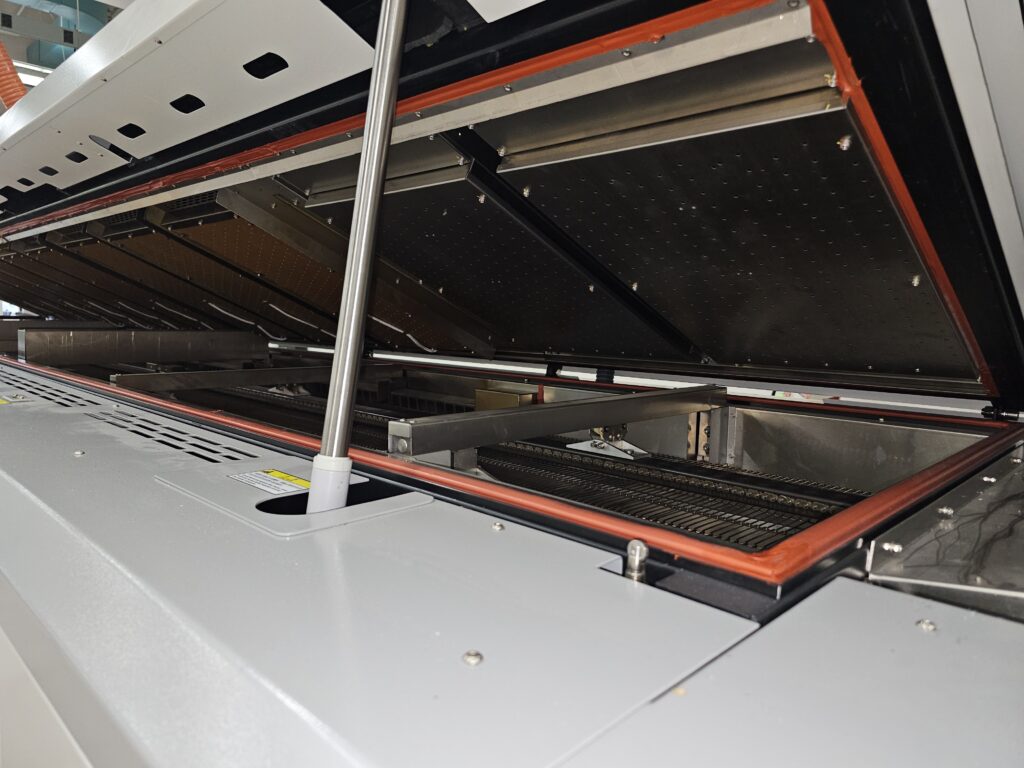

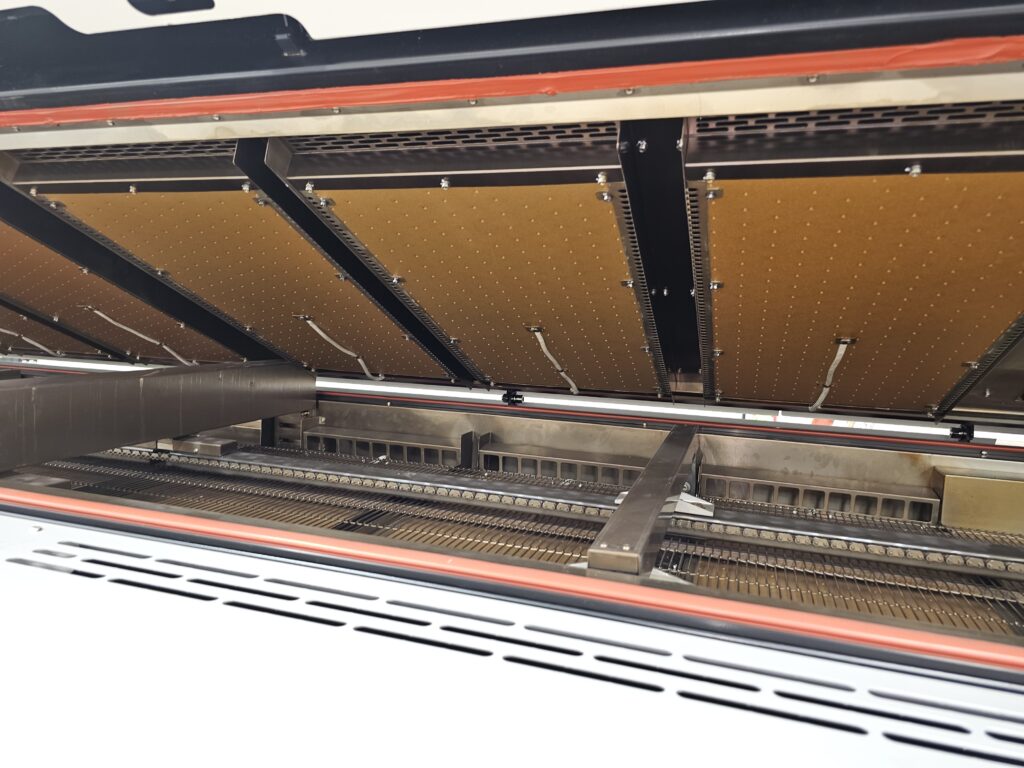

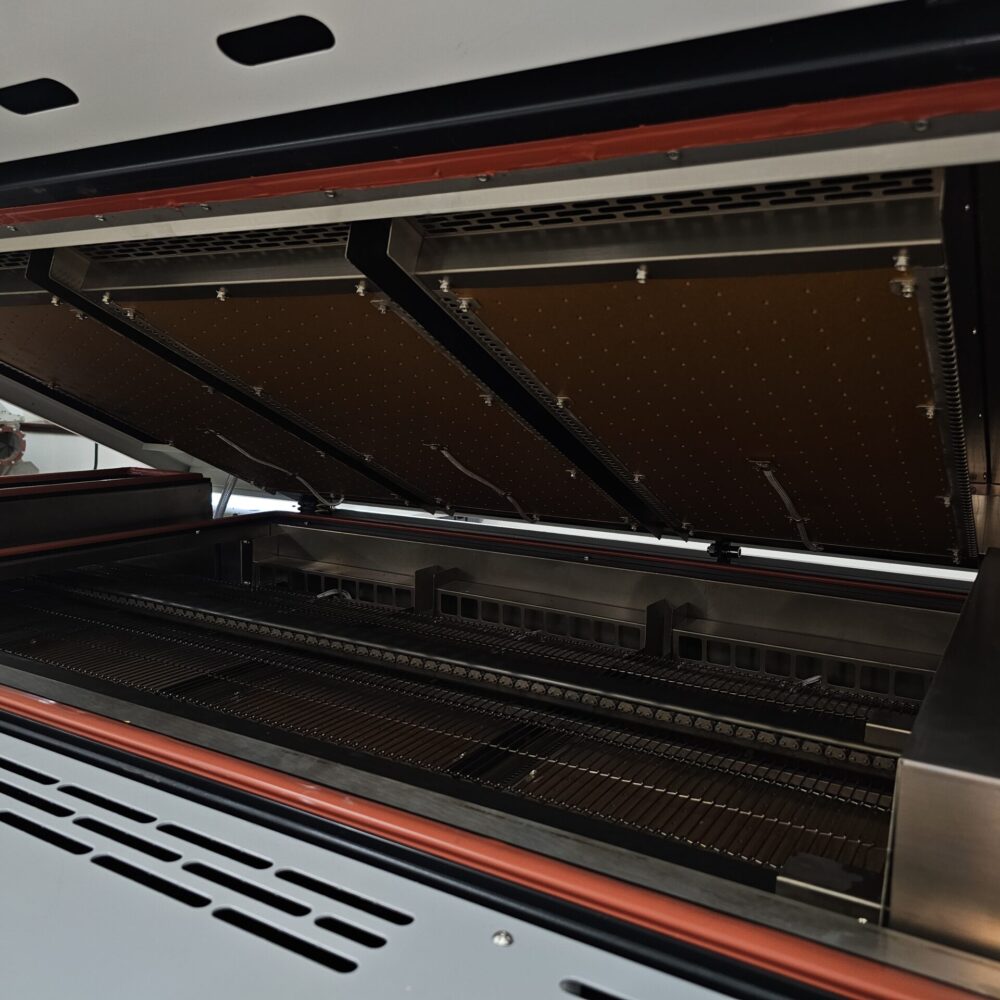

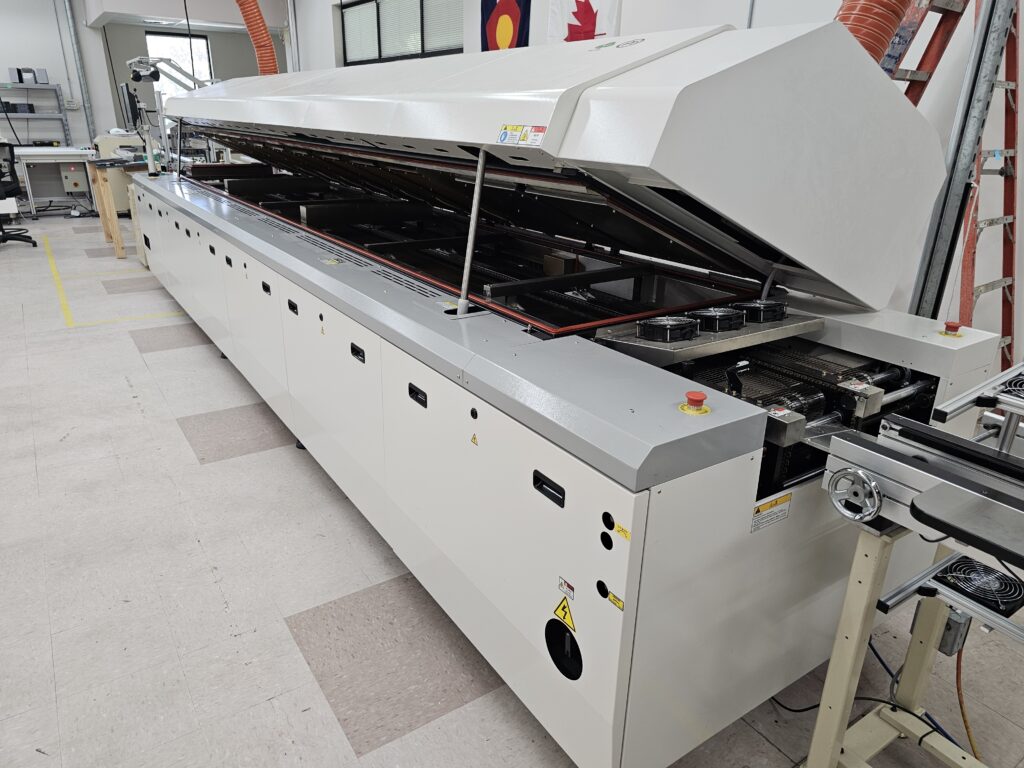

– Electrical driven top hood cover open/close
– Power supply: 3 phase, 480VAC
